The largest Stage Tec Nexus network built to date was used in broadcasting celebrations of the recent 70th anniversary of the founding of the People’s Republic of China. With worldwide distribution handled by CGTN Global Television Network (formerly CCTV International), the parade, procession and gala event were broadcast nationwide by CCTV using 58 Nexus Base Devices, 12 Star routers and 12 mixing consoles.
‘CCTV has been one of Stage Tec’s largest customers for audio consoles and Nexus networks since 2007 and is very pleased with their reliability and redundancy capabilities, which are particularly important for live broadcasts,’ explains Stagetec Media Technology MD, Zeng Dong. ‘The audio quality and features of the mixing consoles are also convincing. And the possibilities offered by Nexus in terms of network size and format conversion were clearly demonstrated at the celebrations.’
For sound reinforcement and recording, a huge Nexus network with three routers and 33 Base Devices as signal distributors was also installed. Audio feeds from the various events were input via 592 TrueMatch microphone converters. The remaining 12 consoles and I/O systems, which were distributed in four OB trucks and four sound studios, were provisioned accordingly.
Two UHD vans and a single HD OB van from CCTV were each equipped with two Stage Tec consoles – a 48-fader Aurus and a 12-fader On Air flex. The fourth OB truck belonged to the Communication University of China in Beijing, which had a 32-fader Crescendo console installed. The OB trucks were also equipped with large Nexus I/O systems. Both UHD OB vans were equipped with 224 microphone inputs and up to 704 AES67 streams. In all four OB vans, individual programme sections of the all-day events were mixed, recorded and forwarded to studios.

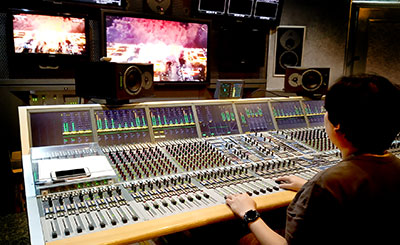

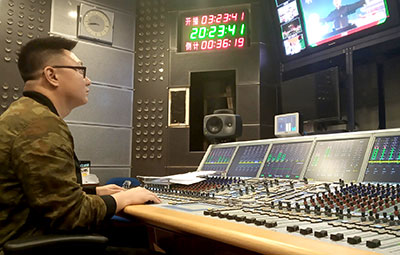

Further signal processing and broadcasting of the events took place from four CCTV sound studios, where Stage Tec mixing consoles and Nexus networks are also installed. Two 56-fader Aurus consoles broadcast the evening gala event from a recording studio. In a second studio, a 40-fader Aurus mixed various different parts of the programme, which were then streamed. In the third studio, the events were mixed and recorded during the day by a Crescendo with 56 faders, which were then broadcast throughout China. The mixing and recording of selected programme sections for international distribution was handled by a 40-fader Crescendo in the fourth studio.
