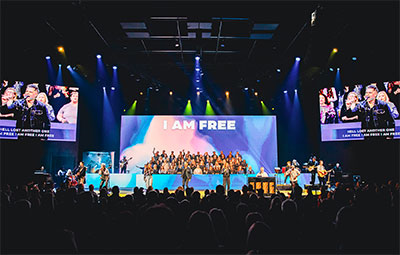

The recently concluded its Make Room campaign waged by Cottonwood Creek Church in Allen, Texas, has increased the size of its main worship centre by 800 seats to near 3,000. A consequence of the expansion, the sanctuary sound system has also been upgraded to meet the demands of the space.
Dallas-based DHSystems, a systems integrator specialising in sound lighting and video equipment with around three quarters of its business coming from the house of worship market, took care of the upgrade, which as made Cottonwood Creek Church home to the first US-installed TT+ Audio GTX line array system delivered by RCF USA.
While the church did not have a fixed budget, ‘the cost of the system was a concern’, notes Zach Anthony, DHSystems owner, design lead and senior systems engineer. ‘But the cost of expanding the six-year-old loudspeaker system with additional amplifiers and speakers was close to the cost of replacing the whole system with GTX,’ he notes
As well as not having the reach to cover the new seating, the existing PA didn’t cover the room evenly. ‘The design criteria was that every seat have an equal experience,’ Anthony says. ‘Obviously, every seat can’t have an identical experience, but we got very close to that with even coverage front to back and left to right in both frequency response and SPL. We also greatly improved the signal-to-noise ratio in the room.’
Pattern control was a further issue: ‘Some of the boxes in the old system were very wide and put a lot of energy on the walls, so there was a lot of reflection. This system has a very precise pattern control for what we need in the room. Intelligibility has gone up.’
DHSystems had no hesitation specifying a TT+ Audio GTX 12 passive three-way line array system before the new components were even shipping. ‘There’s a left and right array with eight GTX 12 boxes providing primary coverage all the way front to back,’ says Anthony. ‘The centre section of the room does not need delay coverage at the back of the room.’
Seven TT 515-A active two-way loudspeakers (compact yet capable of delivering 127dB SPL) are built into the front of the Cottonwood Creek stage as front fills, while three TTW 4-A active wide directivity two-way loudspeakers (with a 134dB max SPL spec) are flown with the rest of the PA to provide LCR and down fill. ‘If you’re relying solely on front fills, as soon as somebody stands in front of it, the fill is gone,’ explains Anthony. ‘And, additionally, if there was only a down fill, the problem then is the imaging is weird if you’re right against the stage – it sounds like the voice of the person speaking right in front of you is coming from overhead. The front fills augment the down fill and they also fix that imaging.’
Two additional TTW 4-As are used delayed as fill for the far rear corners of the room. Twelve of the GTX companion passive GTS 29 subwoofers are flown in three centre arc end fire arrays for low frequency extension which ‘allows us to control the horizontal coverage of the room to where we have equal energy across the width of the room,’ says Anthony. ‘Each sub array has four cabinets, two to the rear, two to the front, we’re able to delay the outer end fire arrays to steer the pattern wider in the room while still having excellent cancellation at the rear.’
The GTX/GTS system is powered and managed by XPS 16KD Dante-enabled four-channel DSP amplifiers which, Anthony points out, ‘has voicings and presets for all of the RCF products – even though the GTX cabinets don’t have amplifiers built into them, it is a complete, closed loop system. For this project, where we have all these speakers in the air, having the amplifiers remotely located in an amp rack is much better from a long-term support and serviceability standpoint.’
RCF’s RDNet sound system management and control software were used for the initial system configuration and alignment, including the cabinet voicing and shading. RDNET is currently used for monitoring the system status. The TT+ Audio system was also interfaced with Cottonwood Creek Church’s existing Q-Sys network, used for facility-wide audio management including reconfiguration for various applications.

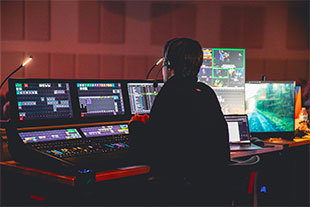

‘The individual speaker voicing is powered by the RCF XPS 16KD amplifiers but the overall system alignment is done through Q-Sys,’ Anthony elaborates, ‘A Q-Sys Core 610 drives not only the worship centre, but all the ancillary spaces – the lobby, the chapel, different breakout rooms and classrooms throughout the campus. The signal flow is Dante from the front of house console into Q-Sys, and then Dante back out of Q-Sys into the XPS 16KD amplifiers. We have a hybrid system so there’s analogue drive lines. We have the passive GTX 12. We have all the additional self-powered cabinets for fills and delays, and those are fed analogue out of the Q-Sys processor.’
DHSystems is beta testing a Q-Sys plug-in for the XPS amplifier that provides status, and signal level monitoring, and control power on/off and all other functions in the Q-Sys environment.
The TT+ Audio system has made ‘a huge difference both in power, detail and clarity’, Anthony reports. ‘The system solved so many issues we were faced with,’ John Ellis, A1 FOH mixer at Cottonwood Creek, elaborates. ‘At low volume, the previous system was virtually unintelligible. To get enough presence out of the system, you really had to push it – now we can have amazing quality at any volume.’
Distortion ‘even at reasonable volume levels’, was also an issue with the previous system. ‘While it may not have been noticeable to the audience, the ear fatigue and harshness was there, which lead to a lot more complaints about “volume”.’
And while SPLs are closely monitored during services, Anthony says that, during initial soundchecks, they were surprised when they measured a great sounding mix to be over 100dB SPL – ‘approaching concert level, but there was no ear fatigue’.
‘Another major issue we had was variance around the worship centre,’ Ellis continues, ‘With the FiRPhase technology that RCF has implemented [an advanced algorithm which corrects phase and amplitude as necessary], and the efficiency of the new boxes, we have incredibly linear and consistent sound throughout the entire worship centre – no more hot/dead spots.’
DHSystems’ relationship with RCF USA began about six years ago and has developed to the point that Anthony has helped the company commission systems and with demos at trade shows.
‘We’ve gotten deeply involved with a bunch of products and helping develop them and improve them,’ he says. ‘I don’t think there’s another single speaker manufacturer that has the width and depth of product line that they do. The retail products are going crazy and it’s definitely a top-selling product line. And now with GTX, they’re playing in the top tier of both the installation and touring applications. They keep hitting home runs.’
He also gives service and support from RCF USA high praise: ‘At some point, something’s going to break or somebody’s going to use it wrong and break it, whether it’s the best product or not doesn’t matter. I work with every manufacturer out there, but I’ve never dealt with a company that understands the urgent needs of production like RCF USA does. They treat people like the working musician who has a product down and needs it for the gig next week with the same urgency as with a major install like this one here at Cottonwood.’
Cottonwood Creek’s facility is frequently hired out as an event centre. ‘We’ve now had three different artists come through and every single one of them left very happy,’ Anthony notes.
‘The system sounds amazing, Ellis reflects. ‘Even in an imperfect room, it went from sounding like mixing on a distant PA with the old system, to mixing on studio reference monitors right in front of the console. I have the freedom to mix without being hindered by the system. We needed a system that could provide incredible clarity and fidelity for a wide range of events and services ranging from low to high volume. We needed a system that would still sound present anywhere in the room, without ever sounding distant, and that’s exactly what we got. It has been an incredible blessing to the church.’
