Two recently completed church installations are just the latest in a catalogue that stretches over 50 years for US house-of-worship audio equipment integration Monte Brothers Sound Systems. They also illustrate the company’s close collaborative relationship with Audio-Technica.

Somewhat unusually, both institutions host some of the major events that typically take place in a cathedral, as well as the celebrations common to a parish church, such as daily liturgies, baptisms and weddings. These events and celebrations involve very different uses of the spaces, making mobile and reconfigurable wireless microphone technology essential.

In addition, both churches had been trying to fix chronic problems with intelligibility before calling in Monte Bros. ‘The problems were typical to most houses of worship – people couldn’t hear,’ says Monte Bros’ Steve Minozzi.

Audio-Technica’s microphones and RF equipment were just one part of the replacement sound systems at the two churches, systems that also include the latest technologies from brands including Biamp and Powersoft.

The Miraculous Medal Shrine in Philadelphia, Pennsylvania, and St Mary’s Seminary and University in Baltimore, Maryland, both contacted Monte Bros with similar requirements – to accommodate daily mass and other events with just the celebrant and servers at or near the altar, but then reconfigure the microphone system to handle multiple speaking celebrants during ordinations and other large services. The churches each seat around 800 congregants.

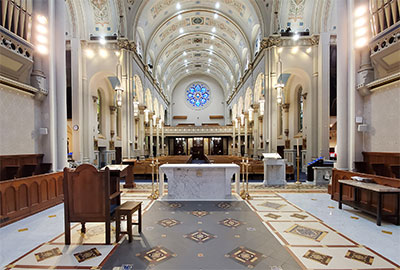

At the Miraculous Medal Shrine, only the microphone at the pulpit, an A-T Engineered Sound ES925/XLR (with MicroLine element), is hardwired. ‘The ES925 MicroLine capsule was designed by Audio-Technica with consultation from Monte Bros in 1987 for Cardinal O’Connor in 1990,’ says Minozzi, and was intended to eliminate the pop of earlier microphone models. ‘That capsule has accomplished our tasks for all these years, so we stay with that mic.’

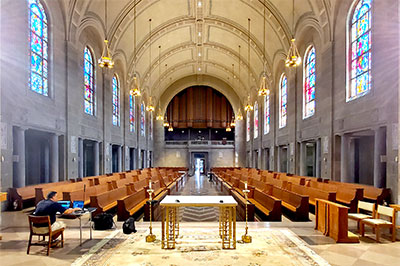

At St Mary’s Seminary, the majority of the microphones are A-T 3000 Series wireless products. Four body packs are paired with two AT899 lavaliers and two BP894 headset mics. There are also four handheld wireless mics available. System 10 Pro bases are paired with ES925/XLRs, with MicroLine elements at the pulpit and the lectern, and a pair of ATW-T1006 Boundary Microphone/Transmitters, one at each end of the altar. A microphone on the piano transmits through a fifth System 10 Pro base.

At the Miraculous Medal Shrine, logistics mobility was similarly an important factor, with the microphones at the altar again serving double duty. The church now has three A-T 3000 Series body packs plus a handheld microphone, all operating in the UHF band at 500MHz. ‘Besides the three celebrants that have the wireless body packs and headset mics on, any additional people speaking at the altar can be heard through the altar microphone, which is a System 10 Pro ATW-T1006 Boundary Microphone/Transmitter,’ Minozzi says.

The boundary mic is not permanently positioned at the altar, which is why a wireless solution was necessary. ‘They don’t necessarily use a mic there all the time, only for big events. The whole sanctuary area, where the organ and altar are, is filled with priests when they have ordinations, and during the celebration of the services, multiple priests will speak.’

Two other positions in the sanctuary area – a lectern and a chair – are also covered by System 10 Pro bases, in combination with ES925/XLR mics with MicroLine elements. ‘Those are moveable to another location in the worship space,’ Minozzi says. ‘Or they may take them out completely.’

Additional System 10 Pro bases provide coverage of the choir. ‘They are usable with any mobile choir microphone that they might want to employ during special events,’ and generally move around depending on the need. For example, he says, ‘You could use ES925s on stands.’

At a sixth location, a System 10 Pro ATW-T1002 Handheld Transmitter is available for use by the organist or a solo singer. ‘It’s usually on a stand or boom stand for soloists either at the organ, in the rear sanctuary or sometimes in the front, for concerts, announcements or whatever,’ says Minozzi.

Monte Bros, which has installed hundreds and hundreds of house of worship sound systems since being established in 1969, has shared its expertise through a webinar entitled Can You Hear Me Now? A primer prepared for the Conference for Catholic Facility Management, which oversees the construction and maintenance of buildings and helps local parishes connect with contractors, the webinar explains the essential component parts of a sound system and offers recommended solutions for six common types of Catholic Church architecture. ‘We broke it down for them,’ says Minozzi, ‘because we are in a position to share our knowledge so churches have a firm starting point before they meet with their design consultant.’
