As a figurehad for 1980s Italian youth, Jovanotti’s first studio album, Jovanotti for President, sold in excess of 400,000 copies in Italy, while his song ‘Piove’ was used on the second season of The Sopranos as an end credit track. Unapologetically popular to this day, Jovanotti is currently on tour in Italy with FOH and monitor engineers using three SSL Live L550 consoles to deliver his signature full, analogue sound to crowds of 40,000 on the country’s beaches.
Monitor engineer for singer-songwriter and rapper Jovanotti (or Lorenzo Cherubini), Massimo Manunza, has been working with the performer since 2007 – which he says has been a great experience both artistically and technically – and has been using the SSL Live L550 since its introduction. ‘It’s such a full sound, and very analogue, which reflects the original recordings,’ he says. ‘The coherence of the SSL is extremely impressive.’

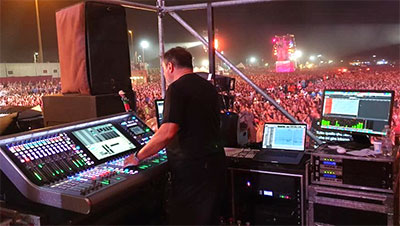

Working with three SSL Live L550 consoles – one at FOH, one for monitor mixing, and one as a mirrored/spare desk – and a SuperAnalogue Madi I/O, the FOH and monitor L550s are connected via a passive galvanically decoupled splitter.
‘I use four ML32.32 stageboxes connected with a Blacklight II Concentrator and connected to the mixer with fibre, where I use all the inputs and about 90 bus outputs,’ Manunza explains. ‘The FOH L550 has three ML32.32 stageboxes, with a Blacklight II concentrator and fibre. To manage this large amount of I/O, I need to configure the layout in a really intuitive way to avoid wasting time searching for resources, so I created layouts for musicians or types of instruments – drums, percussion, bass, guitars, keyboards, tracks, and so on.
‘The two-bay fader tiles at the bottom are for the inputs, and the inclined fader tiles are for the outputs. With my mixer I also manage communications between the various directories. There are 128 inputs, 30 mono aux sends, and 30 stereo aux sends – including effects and services, in addition to 14 VCAs, one PFL and one AFL.’
Manunza states that one of his favourite functions of the console is the ability to modify the signal flow of a single channel to his liking: ‘Undoubtedly, the analogue SSL sound makes the difference, and its EQ helps to modify the sound to your liking even with very small variations,’ he explains. ‘It’s remarkably responsive.’
He is also a fan of the SSL’s dynamics, describing them as ‘transparent’, while allowing him to find his settings with extreme precision. ‘I can’t do without them,’ he enthuses. ‘In particular, the Delay with All-Pass Filter changes your life. I use the whole section of the internal effects now that the processor’s computing power has been increased.
Jovanotti’s tour often sees the singer perform on sandy beaches, which causes issues with some sound equipment. However, Manunza insists that SSL has more than risen to the challenge: ‘The SSL consoles are so reliable, and on this tour we have used them on beaches with dust, salt, sun, wind, humidity and coloured powders – they have never yielded for a single moment. The tour has been an extraordinary success: 17 shows, with about 40,000 people on every beach.’
Pino Pischetola has worked with Jovanotti in the studio since 2005, and has been working with him in a live capacity since 2013. On this tour, the live band plays Jovanotti hits in between a live DJ set. The aim is to achieve a unique musical flow where there is no distinction between, as Pischetola puts it, ‘the two souls of the show’.
‘To achieve this, I’m sending the band mix to Jovanotti’s DJ mixer so he can mix between the live band and the records; I receive his mix and balance it with the vocals,’ Pischetola says, adding that the artist always takes a great interest in the technical aspects of the show, and the solutions used.
‘There are also situations where I control the band totally: by using the SSL’s stems and multiple masters, I can route the band where I want instantly. Also, using stems for FX send returns is a big advantage compared to using the standard aux route; one channel is enough, and using Query, I can easily send the tracks that I want to.
‘For this tour, I wanted to have an analogue approach because there is no fixed setlist, and there is also a lot of improvisation; this is the reason I’m doing front of house mixing from the stage, where I have more control of everything that’s happening. I’m not even using scenes or automation. When I switch on the mixer, it’s set up how I left it in the last show, and I go from there. There is a lot of real-time mixing, which is a lot of fun.
‘On fader tile one, I have one layer with the instrument stems, the master send to the DJ mixer, the DJ mixer return, and the vocals; and on another layer I have all the VCAs that control each musician,’ he elaborates. ‘On fader tile two, there are the layers for all the instruments divided by instrument type, which makes it very quick for me to reach all the band members. Then on fader tile three, I have the master outputs and the quad channel which takes these two signals and feeds the PA.’
The only external device Pischetola uses is a MacBook Pro running MainStage and some samples. ‘I record the multitrack of each show using Madi, and the stems on my MacBook Pro using Dante; I’ve recorded the whole tour without ever recalling a single scene – that’s 17 three-hour long shows only with live moves.’
This is the fourth tour that Pischetola has undertaken using SSL, and he couldn’t be more comfortable using the console: ‘This use of layers and Stems lets me organise the session very easily – even if there are a lot of instruments involved. This time I also used a lot of the internal effects as well. Really, it’s a combination of the sound of the SSL, its processing power, and the signal routing options, which make it so fantastic to use. And for people that are used to the SSL EQ and dynamics, like myself, you can achieve things so quickly because the console is so intuitive.’
