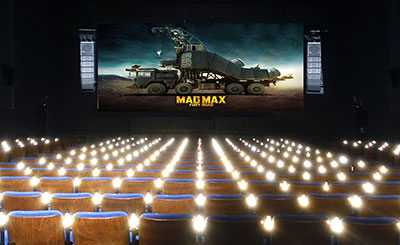

Known throughout the Tokyo metro area for supporting first-run feature showings with unrivalled audio, the Tachikawa Cinema Two flaunts its new twin arrays of Meyer Sound Leopard line array loudspeakers – placing them in full view on each side of the screen. Serving the largest screening room in the multi-theatre complex, their recent installation has been noted by audiences, and in the cinema’s box office receipts.
‘We have gained a reputation for sonic realism beyond that which can be heard in other theatres,’ says Takeshi Toyama, head of the planning office at Tachikawa Cinema City. ‘Our audience numbers were up 30 per cent in 2015 over the previous year, and in 2016 the numbers extended even further. Of course, this is not due only to improving sound quality, but we have no doubt that the Meyer Sound system adds depth and subtlety to the cinema experience.’
The screen channels comprise left and right arrays of six Leopard line array loudspeakers flown under a 900-LFC low-frequency control element, with a hidden centre array of eight Leopard loudspeakers also suspended under a single 900-LFC element. Additional LFE power comes from two 1100-LFC low-frequency control elements, and 12 HMS-12 surround loudspeakers are deployed around the room perimeter. Four discreet MM-4XP loudspeakers enhance sonic detail for the rearmost seats. The system was supplied by Artwiz (formerly ATL), the Meyer Sound dealer for Japan.
‘Our goal in choosing a Leopard system was to exceed the ordinary level of cinema sound,’ Toyama says. ‘We designed our sound system to precisely and faithfully reproduce the sound as recorded on the mixing stage.’
The visibly dominating Leopard arrays were a particular sensation during a recent re-screening of Mad Max: Fury Road, which features a scene with the heavily speaker-laden Doof Wagon roaring across the desert to the accompaniment of aggressive rock accompaniment – prompting the cinema audience to post pictures on Twitter and Instagram.
The new system was a staged installation, with the 1100-LFC elements arriving in 2015, the Leopard arrays installed in 2016, and the new HMS-12 surrounds completing the project. Theater 1, the largest auditorium in the Cinema Two complex, seats 382 and also features a Sony SRX-R320 digital cinema projector and a 4.45m x 10.5m silver screen. Prior to the renovation, the audio system was anchored by Meyer Sound MTS-4A main loudspeakers supported by 650-P subwoofers and UPJ-1P VariO loudspeakers as surrounds.
The original Cinema City complex was opened in Tachikawa in 1994, with Cinema Two opening nearby the following decade. Cinema Two houses five theatres with a total seating capacity of 1,245.
