London landmark and former picture house, the Scala at Kings Cross has hosted many top bands since reopening in 1999 as a live music and dance/club – including Tiesto, Nine Inch Nails, Kaiser Chiefs, Foo Fighters, Rihanna and Lana Del Rey.

Keeping pace with the demanding technical requirements of artists of this calibre, the Scala recently upgraded its house PA system to a Martin Audio MLA Compact, with the new system designed and installed by Capital Sound (for whom both The Killers and Stereophonics are long-term touring accounts).

With as many as 800 people packing the place for live stage events (rising to 1,145 capacity for club nights), audiences have a much better listening experience at the ‘difficult’ venue. ‘We recognised that this is a difficult venue, with a big reflective glass wall at the back, and we felt that MLA Compact would offer the ideal solution,’ admits Capital Sound’s Operations & Development Director, Paul Timmins. ‘The sale was concluded over a course of meetings.’

Capital Sound became aware that the Scala were starting to upgrade, having taken possession of a new digital console, they approached the venue’s Technical Manager, David Preston and he in turn introduced them to Scala owner, Ryan Bissett and Operations Director, Lee Hazell.

Capital Sound Head of Development, Robin Conway, who had been responsible for much of the system design and sound predictions, said that with a new console putting out clear sound, the venue had deserved a groundbreaking PA to match. ‘MLA is set with a flat frequency response to deliver clean and identical sound everywhere in the venue – and this will enable it to overcome some of the inherent difficulties it faces. At the same time, the fact that it is now state of the art will make it more attractive to engineers coming in.’ And the rider-friendly install will also obviate the need for production crews to lug equipment upstairs in difficult load-in circumstances.

Both Capital and Martin Audio were equally aware that such an installation will open up greater possibilities to the corporate sector, including record companies for artist showcases, while both parties will recognise the prestige in having a flagship site for the MLA platform.

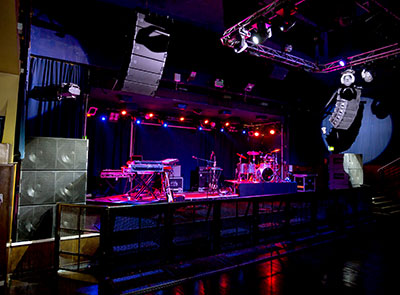

The installation itself comprises six MLA Compact elements per side and three stacked DSX subwoofers on either side of the stage. In addition, they have provided two of Martin Audio’s Coaxial Differential Dispersion CDD-Live12 – one for centre fill and one for balcony fill – all operating under Vu-Net system control.

‘MLA Compact is a 100° box so there is already plenty of horizontal coverage,’ Conway  says. ‘It made sense to fill any holes [in the coverage pattern] with a separate CDD-Live rather than using MLA for balcony coverage.’

At the same time Capital have upgraded the stage sound with eight Martin Audio LE200 floor monitors that deliver coverage from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height. These are driven by Martin Audio MA5.2K amplifiers with processing via a pair of Martin Audio DX2 to enable eight bi-amp mixes. In addition a pair of WS18X subs are used for drum fill and are driven by a Martin Audio MA9.6K DSP amplifier.

Capital has provided a new cabling infrastructure and the installation has been carried out in such a way that it is semi permanent, and can be used as a training facility. It has been supplied on a long-term rental basis.

Due to the venue’s heavy programme, the fast-track installation was carried out over a carefully-selected two-day period, and was supported by Martin Audio’s Product Support Engineers, Nigel Meddemmen and Simon Purse, while house engineer David Preston has subsequently joined Capital’s Development Team.

‘MLA has been increasingly evident in all the big, high-profile festivals Capital has supported, particularly in London,’ Timmins  closes. ‘We therefore felt it was time that one of the major London venues had its own MLA , which will also provide allow potential customers to hear a system before they use it.’
