Shure has added the Axient Digital ADX3 plug-on transmitter, to the Axient Digital Wireless System for audio professionals in broadcast television and location sound who are seeking an industry-standard transmitter that enables real-time remote control of key parameters.
ADX3 transforms any XLR-terminated microphone into an advanced, portable Axient Digital ADX Series wireless microphone, delivering the same transparent audio quality, RF performance and wide tuning of the AD3, with the addition of Shure’s proprietary ShowLink technology.
Whether the microphone and ADX3 are hand-held or suspended above an actor with a boom, ShowLink allows comprehensive, real-time control of all transmitter parameters, including interference avoidance, over a robust 2.4GHz diversity wireless connection directly from the convenience of having the receiver in a cart, bag, camera or truck.
The ADX3’s compatibility with Wireless Workbench supports control and configuration, optimal spectrum management, and frequency coordination. With real-time monitoring via the AD600 Spectrum Manager, sound engineers can neutralise RF interference by manually switching the signal to a clear backup frequency, or by programming the system to do it automatically. Additionally, the ADX3 integrates with Axient Digital AD4D and AD4Q rack receivers as well as the ADX5D Dual-Channel Portable Receiver.
The ADX3 features a dust and moisture resistant, rugged metal construction, as well as an OLED display with easy-to-navigate menu. The device’s locking mechanism ensures a secure, wobble-free connection that readily interfaces with handheld and shotgun mic, enhancing mobility during broadcasts and on TV/film sets.
The ADX3’s selectable modulation modes optimise performance for spectral efficiency. Users can select High Density mode to dramatically increase maximum system channel count or run ADX3 in standard mode for optimal, low-latency coverage. The ADX3 also features automatic input staging and equips users with AES 256-bit encryption for secure transmission. With a line-of-sight operating range of 300ft (100m), users can be certain they’ll experience maximum signal stability and transparent digital audio that sounds like a wire.
The ADX3 comes with two SB900 lithium-ion rechargeable batteries, with each battery providing up to six-and-a-half hours of continuous use, precision metering, and zero memory effect. The SB900 battery can be charged over a USB-C port. Alternatively, the transmitter can be powered externally via USB-C or by two AA batteries.

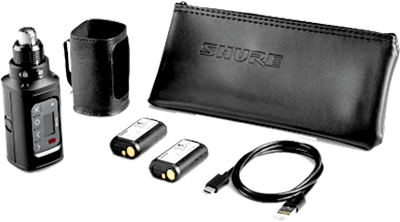

The ADX3 is shipping now for US$1399/£1100. The package includes the plug-on transmitter, two SB900 batteries, USB-A to USB-C cable, belt clip/pouch, and a zip bag for storage.
More: www.shure.com/adx3
