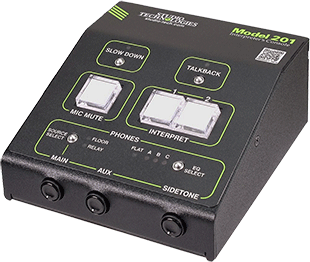

Studio Technologies has announced the Model 201 Interpreter’s Console, a Dante Audio-over-Ethernet unit specifically for interpretation use in single or multi-language applications both locally or in off-site/remote applications.
The Model 201 creates a complete interpreter position and includes both standard features as well as advanced functionalities that are not typically provided by ‘off-the-shelf’ interpretation equipment, including the ability to create two independent interpretation audio channels. Configuration choices allow a variety of audio content to be included in the interpretation audio – content that can be automatically muted or dimmed when interpretation is active.
A dual-channel (stereo) headphone output can be configured to meet the needs of the interpreter. This includes selecting the audio sources, channel routing, and sidetone (confidence) signal operation. A set of buttons and rotary controls allow the user to establish the site-specific operating condition they desire.
Separate interpret active and mic mute buttons allow the connected microphone to be routed to the desired interpretation channels as well as being momentarily muted, while an independent talkback function allows a separate audio path to be established from the interpreter to production personnel. Additionally, a slow down function allows the interpreter to signal to the presenter (the originator or ‘floor’ source) that speaking more slowly is warranted.
While the Model 201 can be used by itself to create a simple, single-language interpretation position, it can be part of a multi-language, feature-rich application using Dante to connect one or more units with other Studio Technologies products in a sophisticated voice interpretation system.
The Model 201 provides a two-channel (stereo) headphone monitor output that is routed to both 5-pin female XLR and 3.5mm TRRS headset interface connectors. Two pushbutton switches and three rotary controls on the front panel allow users to select their desired headphone audio sources and signal levels. One pushbutton switch and two associated LED indicators allow direct selection of the desired monitor source, either the ‘floor’ (the person whose text needs to be interpreted) or ‘relay’ (an intermediate audio signal that is usually selected as an interpretation technique to support multiple languages). Two additional Dante receiver (input) audio channels, Aux 1 and Aux 2, can be used to interface the Model 201 with signal sources such as audio consoles, media playback systems, or remotely located equipment.
Only a Power-over-Ethernet (PoE) connection and headset with attached microphone is required for operation. The Model 201 supports both ‘pro’ headsets that use a 5-pin XLR connector as well as ‘gaming’ headsets that use 3.5mm TRRS plugs. The Model 201 is housed in a compact steel enclosure that’s intended for table-top use.
The Model 201 is configured using the STcontroller software application. Available free of charge from Studio Technologies, STcontroller allows production personnel to quickly and easily configure the unit’s operating capabilities to meet an application’s exact needs. STcontroller is offered in versions that are compatible with the WinOS and macOS operating systems.
More: https://studio-tech.com
