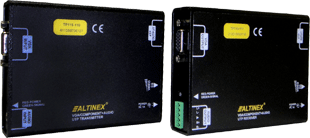

Altinex has released the TP115-110 and TP115-111 Computer/Component Video + Audio UTP Transmitter/Receiver, allowing distribution of computer video and audio signals over long distances between presentation displays and projectors.

Altinex TP115-110/111‘The TP115-110 and TP115-111 are a compact, value-packed solution for those situations where computer video and audio signals need to travel considerable distance in order to reach the projector or video display,’ Grant Cossey, Altinex Vice President of Sales, explains. Used together, these units enable one to take advantage of existing Cat5 cabling infrastructure and easily resolve issues of distance between the source PC and the destination display. This is a terrific means of addressing a very common signal transport issue.’

The TP115-110 provides transmission of computer video and audio signals over Twisted Pair-type (Cat5) cable, while the TP115-111 receives computer video and audio signals over Cat5. The units offers proprietary video equalisation that facilitates very long cable runs, and a signal detect feature shows when a signal is present.

The transmitter and receiver are streamlined and lightweight. The TP115-110 transmitter receives the computer’s video output via a 15-pin HD female connector. Stereo audio input is received via a 3.5 mm jack and is converted to mono prior to transmission. The transmitter outputs these signals over the Cat5 cable using an RJ-45 network connector. At the other end of the Cat5 line, the TP115-111 receiver receives these signals via its RJ-45 network connector and then outputs video via its 15-pin HD female connector while audio is output via a 5-pin terminal block.

The units have an audio bandwidth of 20Hz to 20kHz. Both the transmitter and receiver have a horizontal frequency range of 15kHz to 95kHz and a vertical frequency range of 50Hz to 180Hz.

The Altinex TP115-110 / TP115-111 Computer/Component Video + Audio UTP Transmitter and Receiver are available now, with a US MSRP of US$340 and US$351 respectively.

More: www.altinex.com
