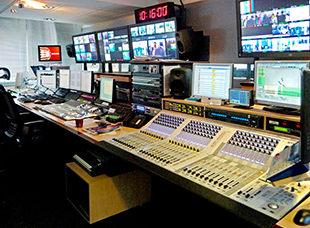

Providing international news and current affairs for three independent television channels, France 24 has upgraded its audio system with Studer Vista 5 digital mixing consoles installed in each of five different studios. France 24 also has a 6-fader, 12-channel Studer OnAir 1500 console that is being used in a small television studio for basic interview functions. It features integrated USB playback add recording functionality, along with full channel processing that includes four-band EQ, compressor, limiter, expander, gate and de-esser.
Located in Issy les Moulineaux outside of Paris, the network required a fully integrated, networked audio system that allows operators to easily share information throughout the system, enabling efficient and speedy workflow. ‘This was a very complex installation, but at the same time, the system needed to be simple to operate and manage,’ said Philippe Delépine, Sales Engineer for local distributor Audiopole . ‘With this in mind, we needed to provide the ability to connect different components so that they could work as a single system.’
Each console is connected via Cat5 to a SCore Live DSP engine and D21m integrated I/O system. Providing backup, each Vista 5 console is supported with a Studer Vista Compact Remote Bay, connected to an SCore Live engine via Cat5. ‘In order to secure each console as a redundant surface while still keeping all sources/destinations of the process rack, the Compact Remote Bays are valuable,’ explains Olivier Tournedouet of France 24. ‘They help us accomplish all this without losing any resources.’
All consoles and components are connected via Studer’s ReLink Resource Linking I/O Sharing System, which links together Studer consoles in various locations to allow audio source and control data sharing across a wide network. A Studer Route 6000 routing and signal processing system enables the console operators at France 24 to directly access all shared sources via each Vista 5 screen display. ‘The Route 6000 and ReLink systems are a clever way to help us share all resources between the different devices, and all sources connected to the Route 6000 are available for all consoles,’ Tournedouet says.
The system also features four Studer Compact Stageboxes, offering cost-effective expansion of I/O connections, with each Stagebox only occupying 4U of rack space. Each Stagebox offers a configuration of 32 mic/line inputs and 16 line outputs.
‘The Studer system has been working perfectly, 24 hours a day, since installation,’ Tournedouet reports.
