Part of a £30m expansion, the Edinburgh International Conference Centre’s new Lennox Suite has been equipped with an Optocore fibre routing matrix to support the variety of signal protocols required by the role of the new multi-purpose suite

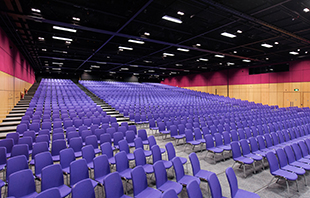

Occupying 1,600m2, the new facility is a multi-level expansion of the existing Edinburgh International Conference Centre (EICC), with a glass atrium and additional event spaces. This versatile auditorium contains a reconfigurable moving floor, which rapidly transforms the space from a flat floor to a fully raked auditorium, as well as making it operational in both arena and tiered cabaret modes, so that a variety of events can be hosted. It can also be split into a total of three rooms or run as a single space in the various different formats.
The Optocore fibre distribution system was specified by Theatre Projects Consultants (TPC) and installed by Northern Light, following a competitive tender to equip the new facility for audio control, data and video, linking the sound and A/V systems to the original building. Northern Light also provided the production lighting dimmers and control systems.
TPC Lead Consultant Mark Ryan had recommended an Optocore solution early in the process, based on its ability to work with various formats such as Madi, AES and analogue, and a routing matrix was duly constructed, with assistance from the German company’s support engineers: ‘The main benefit the Optocore system offered us was to automate the reconfiguration of the A/V system to match the possible layouts of the room,’ he explains. ‘This allowed the sound and video comms system to be as flexible as the spaces it served without having to double-up on cables and equipment.’
‘The Optocore system was designed to provide a backbone distribution within the main sound racks for the integration of multiple inputs from the three control rooms and then output over copper to the main amplifiers in the amplifier rack room,’ adds Northern Light Project Manager, Dave Webster
The signals are distributed via AES3 from the stagebox to the amplifiers, with the ability to input and output analogue as needed. This is implemented over Cat5 via three Optocore X6R-TP-16MI and X6R-TP-16LO Sane devices, and X6R-16AE into a Yamaha DME64 mix engine, which handles the day-to-day routing of the desk outputs in the different formats. Madi outputs from the three DiGiCo SD8 digital mixingdesks are routed to the amplifier racks via DD4MR-FX digital interfaces, which provide 128 coaxial Madi I/O channels with Sane and Ethernet.
Both Ryan and Webster confirm that they received ongoing design support from Optocore during the process, and on completion the German company conducted full client training: ‘The end result was an easily adaptable and scalable audio I/O backbone to support the diverse range of events presented at the EICC,’ Ryan says. Working with Northern Light, as always, was a pleasure due to their solution-oriented approach to complex projects.’
EICC Head of Technical Production, Kenneth Boak, underlines the effectiveness of optical fibre solution in practice: ‘The Optocore network is part of an integrated system which allows us to deliver high quality sound in a very flexible environment,’ he says.
