The ambitious In Motion – Art & Football exhibition at Dortmund’s German Football Museum celebrates The Beautiful Game through works from 20th-century artists from around the world. Using high-powered projectors, LED displays and an advanced audio system with 25 Genelec Smart IP networked loudspeakers, the exhibition provides a richly immersive visitor experience.

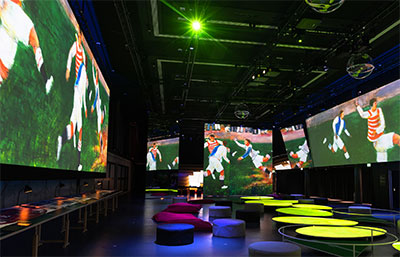

Twenty-three UHD Epson projectors animate dynamic surfaces, complemented by film, photography and sound. Visitors move through three zones, encountering features including a 22m ‘Painter’s Palette’ floor projection and a 5.1 x 4.2m projected sketchbook.
German integrator Sigma System Audio-Visual handled the complex A/V design and installation: ‘We’ve worked with the German Football Museum for over ten years,’ says Christian Backes, Sigma’s head of A/V integration. ‘This is a long-term exhibition but, importantly, it’s designed so that when they choose a new theme, only the content needs changing – the core technology remains.’
A multi-layered audio system was essential to support the large space and numerous displays. Berlin-based LEM Studios and PBX Studios were responsible for the sound design and audio content production. Markus ‘Hossi’ Hossack of LEM Studios served as lead sound designer, mixing audio in both the studio and onsite. Starting from a stereo soundtrack, he adapted it into a rich, immersive soundscape. ‘The idea was to get the whole place shaking,’ he says.

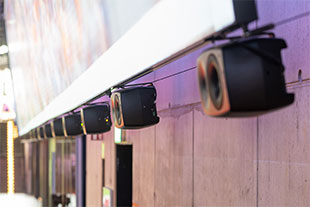

A powerful in-ceiling system provides full-range audio across the venue, but for immersive playback, the sound had to be more intimate. ‘For the immersive details the sound needed to get “up close and personal” to the visitors,’ says Hossack. To achieve this, 25 Genelec 4430A Smart IP loudspeakers were installed discreetly beneath the two large lateral projection walls, each 17.5m by 26.5m. The 4430s played individual audio elements, creating a spatialised mix where different speakers deliver different content depending on where visitors stand.
At one point in the show, classical waltz music fills the room via the ceiling system, while the Genelecs play isolated instrument parts. Subtle sound effects like footsteps, pencil sketches and raindrops are also localised to match visuals. ‘We wanted to create a “walkable cinema”,’ says Hossack. ‘We wanted to contain the sound in different zones of audio, giving each visitor a unique listening experience.’
‘In the studio we mixed in Dolby Atmos and were able to prepare everything in 7.1.4,’ he continues. ‘However, in the venue this had to be scaled up to incorporate all 50 loudspeakers. Managing the timing, routing and synchronisation was a real challenge, and we only had four days to put everything together. It was tight.’
Genelec’s Smart IP Manager software proved invaluable. ‘Given the short deadline, it was essential to work quickly, and Smart IP Manager enabled me to handle any filtering I wanted to do, as well as adding latency to each loudspeaker,’ says Hossack. ‘We took the middle of the show as our zero and worked out from there to maintain the immersive effect, adjusting for latency as we went.’
The Smart IP system’s network connectivity brings audio, power and management via a single CAT cable. Hossack and LEM Studios had previously worked on a Marvel exhibition using 70 Genelec Smart IP speakers. ‘We raised the audio budget for that project significantly,’ he says. ‘But the scalability, sound quality and quick installation make it worth the cost.’
While ultra-precise localisation wasn’t always achievable, Hossack believes the outcome was even more effective: ‘Visitors are free to explore the exhibition, so getting them in the exact sweet spot for a particular audio moment would have been impossible. With slightly less focused localisation, the listening experience became more accessible while still achieving the immersive effect. I am very happy it turned out so well with just four days to set up.’
Christian Backes from Sigma shares this enthusiasm: ‘It’s a huge pleasure for us to use our expertise and media technology to help create an exhibition that connects people globally.’
Despite the tight timeline and technical complexity, Genelec’s Smart IP loudspeakers proved key in shaping an immersive, memorable audio journey through art and football. With plans underway to tour the exhibition globally, the Smart IP system is seen as essential to making that possible. ‘The system can be installed or taken down in a fraction of the time of traditional systems,’ concludes Hossack. ‘It’s the most versatile loudspeaker I know on the market.’
More: www.genelec.com
