The centrepiece of the university campus activity in Hamilton, New York, Colgate Memorial Chapel is a multi-use facility that supports a range of activities from interfaith church services to lectures, presentations and orchestral concerts. The chapel’s long-term technical partner, TSH AV, recently met the university’s requirement for a loudspeaker upgrade by specifying Martin Audio’s O-Line micro line array.

The new sound system is sufficiently flexible to reproduce spoken word and full dynamic range events, with its compact footprint allowing it to sit discreetly within the chapel’s aesthetic. According to TSH owner Timothy Harris, the chapel had previously made do with a mishmash of ceiling speakers. ‘They were all over the place, it just wasn’t a properly designed system at all,’ he says.

Harris had originally proposed a new sound system back in 2017 but it was only last year that the facility had the budget to proceed. ‘With O-Line in use across churches in the UK and Europe, I proposed this solution from the very beginning. This speaker is meant for sanctuaries like this.’

The challenge was to provide even coverage for a 750-seat sanctuary without a centre aisle – accommodating 450 on the lower floor, 200 in its balconies and 100 on the stage.

Harris discarded the option to fly the new PA from the cupola-shaped roof in favour of wall mounting two 12 element O-Line columns on either side of the altar. A pair of SXP118 subwoofers are available for events needing further bass reinforcement. The line arrays are powered in two-box resolution by three Martin Audio VIA 2004 amplifiers with management in the dedicated DX4.0 digital system processor, making it an end-to-end Martin Audio solution.

Despite its vaulted dome, the chapel is sonically fairly forgiving and thus required minimal processing. ‘Back in the 1980s they installed an acoustical ceiling, since the ceiling runs straight across, but rising to the dome in the centre. The acoustic panels didn’t provide a perfect solution, but it certainly helped.’

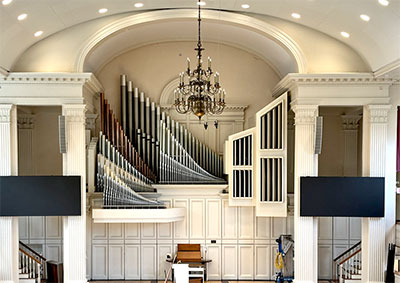

Under each hang is a large LED wall, also installed earlier by TSH AV, while a pipe organ provides an imposing backdrop. The integration company originally set up in 2013, and within a year Harris and his technical team were attending MLA training in Las Vegas. Since then they have carried out installations across Martin Audio’s PA portfolio, ranging from Wavefront Precision to the CDD coaxial differential dispersion series as well as other O-Line installations. Final tuning of the Colgate system itself was entrusted to consultant Michael Lawrence from Precision Audio Services ‘for verification that the system was tuned correctly, with TSH Audio responsible for commissioning.

‘It was a surprisingly well-behaved room given the size and the surface materials,’ Lawrence says. ‘I worked with Tim on a final design iteration, making a few tweaks to the splay angles before the system was installed, so once I got on site for the alignment the coverage was already behaving as intended. The commissioning session was mostly spent getting the system voiced appropriately for the space. We did another round of listening with a representative from the college and made sure everyone was happy.’

Reflecting on the work, Harris can point to a solution that thoroughly meets the brief for a sonically superior, minimally invasive sound system. ‘Thanks to O-Line we have been able to get the audio where it needed to be instead of it going all over the place as it would have done with a traditional line source speaker array.’

Mark Hine, Director of Classrooms, Digital Media and Events at Colgate University, agrees: ‘TSH has been a trusted partner on numerous projects, our Colgate Memorial Chapel project being no exception. This project began well before the pandemic and TSH shepherded us through supply chain challenges all the way to system calibration.

‘For the most part, the change has gone [visually] unnoticed – which is a good thing. We have also managed to negate the constant worry of feedback from the mics.’
