A multipurpose space with a capacity of 1,500 and a variety of needs, Cardiff Students’ Union’s Great Hall presented SWG Events with several challenges when designing and installing new a frontline PA.
First, the PA system needed to meet the approval of incoming circuit bands and productions, while at the same time being able to adapt to a wide range of events. Since live music events are hosted in more than one space within the building, it also needed to be demountable and redeployed in various locations.
SWG Events successfully met the challenges presented to them, their pitch based around Martin Audio’s premium Wavefront Precision WPS line array: ‘With our strong ties to the Wavefront Precision product range in our busy rental inventory, we were confident we could provide a solution that not only offered a high-end experience to customers, but also one that would be well received by touring parties and promoters,’ says Joe Bailey, Account Manager at SWG Events.
He also affirmed that ‘the on-going goal is to assist the Students’ Union in developing their already very strong status as a top live music venue in Cardiff.’
These had been the requirements handed down by Head of Venues, Callam Thom: This year the Great Hall enters into its 50th year of operation, as one of the oldest music venues in the Capital City. It is therefore crucial that we keep up with the demands of modern-day touring and the expectations of our audiences. To keep our name up there with the best venues, we wanted to offer a state-of-the-art system that is supported by a company with a wealth of experience. It feels right that our customers are given a sector-leading audio experience.’
‘Further, with our venue being so multi-use, going from live music to a nightclub to a conference, it was imperative that the solution was easily adjusted.’
The Great Hall has recently seen significant development of the two accessible viewing balconies, vastly increasing the spaces available for those with additional viewing needs. The development provided an upper-level bar, toilets and viewing platforms – spaces that also had to be served by the sound system. SWG Head of Audio, Simon Purse sensed these challenges when confronted with a building that was ‘basically a big concrete square, with low balcony at the end, and the FOH position situated just under the bulkhead’.

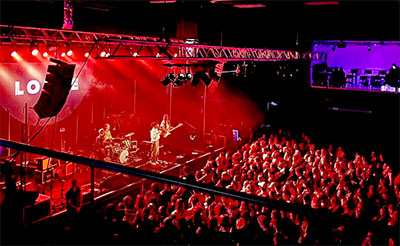

The SWG team based their design for the conventional proscenium arch system around six elements per side of WPS, driven in two-box resolution from Martin Audio’s iK42 amplifiers. Eight SX218 subwoofers are placed in a broadside array, while also at the stage, four Blackline X8 fill gaps in the close field, with two Torus T1230 delivering out fill sound.
Given the low balcony overhang, a ring of four CDD8 provides under balcony delay and a further four CDD8 above the accessible viewing left and right-side balconies themselves, DSP for which i provided by a dedicated DX4.0 controller; this also brings the fills into the VU-Net control network.
‘While there are elements that are fixed, a lot of it is like a conventional flown touring system,’ Purse says. ‘Exams one day might be followed by a rock show, so it can be derigged and taken down or change shape, depending on the requirements. Even the stage is removable, making probably the most diverse room I’ve ever been in.’
Martin Audio Product Support Engineer, Robin Dibble, assisted with tuning and time alignment which, in a reverberant concrete venue, was essential – despite the presence of drapes and acoustic treatment. Presets are programmed and stored, depending on the different scenarios. Following commissioning by Dibble, SWG Events provided training to the in-house crew, while they are also providing crew for live music events from a system engineer point of view.
‘There is a snapshot for when the system is in its default live show mode, with time alignment EQ and settings,’ Purse explains. ‘For other events such as when a DJ is placed in the centre of the room, the PA is moved, new angles applied and given new optimisation. The system then resets back to its default state afterwards.’
Bailey also emphasises that the system has performed well in the first academic year of the contract with over 50 live music events since installation in Autumn 2023, most of which are touring artists.
Finally, to ensure Wavefront Precision gets full use, the system will come out during the university’s summer recess to be redeployed on SWG Events’ large calendar of summer outdoor work, before returning to the Students’ Union for Freshers’ Week and the start of the Autumn term.
Summing up, Thom, confirms that the solution totally fulfils the brief: ‘Incoming engineers have been pleasantly surprised and impressed by the new PA, noting the quality and headroom that it delivers – even for the louder artists and dance music genres.’
‘As for the audience experience, with a significant proportion of the floor space being under balconies, the fills have managed to increase coverage greatly, meaning that customers have a far better experience even at the back of the room. The fills on the balconies have also been instrumental in ensuring that our accessibility customers get the best possible listening experience.
‘Overall, the flexibility of the Martin Audio system means that SWG have been able to deliver on all kinds of scenarios with no compromise to the audio coverage or quality – even a drum and bass event with the DJ in the middle of the dancefloor.’
