Having undergone architectural restoration with some accommodation for audio reinforcement in 1996, the 178-seat Conron Hall at Western University’s University College followed with a US$34m renewal of the building in 2018. A key element of this was a greatly improved sound system centred on loudspeakers from Renkus-Heinz.
‘Conron Hall is a special facility but it also doubles as a classroom, so we wanted to install a typical classroom A/V system that would, in terms of user experience, be consistent with our other classrooms’ points out Chris Jordan, Senior Designer and Manager of the Classroom Technology Group at the university. ‘This was trickier than it sounds.
‘Conron Hall boasts beautiful stained glass windows, oak panelling, oak beam construction, an arched ceiling, and a balcony in the back. Those features, combined with hard surfaces on the walls, made speech intelligibility difficult to achieve.
‘The only absorption is in the seating,’ says Dieter Kunz of DKE A-V Systems Engineering, an independent A/V consultant who worked on the project. ‘The acoustics of the hall were perfectly usable for music performance, but the hall’s primary use now is speech, and the acoustics were not appropriate for that.’ Jordan puts it more bluntly: ‘From 1925, when the hall opened, until the renovation in 2018, it was hard to understand someone who was talking in that space.’
Limitations on the 1996 facelift prevented Jordan’s group from installing a centre loudspeaker cluster, so they had put in full-range speakers bolted to the wall on either side of the proscenium. It was not an effective solution, which Kunz verified when he modelled the room and existing system in Ease acoustic simulation software.
‘I demonstrated to Chris that there was as much coverage at the presenter position as in the first two rows of seating, but not enough coverage in the middle of main floor raised seating, and no decent coverage at all in the balcony,’ he confirms. This exactly matched what people had reported hearing-and not hearing-in the hall.
Kunz focused on building an accurate acoustic model of Conron Hall: ‘I like to get as much detail in the modelling process as is necessary for a client to look at different scenarios and be prepared for the meetings that will come down the trail.
‘I put in details like the placement of ceiling coffers, windows, beams, doors, pillars, railings, and so forth, so that if I had to take Chris into the space virtually, for example, he could think through with me what would happen if we raised or dropped the cluster by a few feet.’
Next came a thorough process of sifting through options: ‘We looked at products from five manufacturers and did due diligence looking at configurations,’ Kunz reports. ‘We looked at front-loaded ‘point and shoot’ boxes, horn-loaded boxes, column arrays, line arrays, and steerable products and configurations like wall-mounted, central overhead-mounted, main speaker with delay speaker for the balcony, and so on. At the end of the day, the best solution was an array of Renkus-Heinz CFX101LA loudspeakers, which covered properly from the front of the non-fixed seating right up to the back of the balcony.’

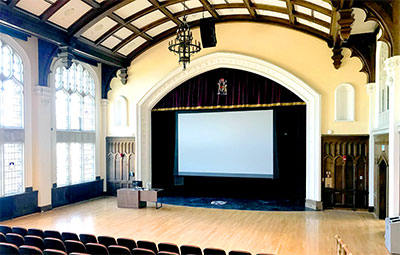

Four CFX101LA cabinets were flown in front of, and above, the proscenium arch, each powered by a Lab Gruppen E8:2 amplifier. No fill loudspeakers were needed for the balcony, and speech reproduction did not require subs.
Each amplifier was connected to a Symetrix Radius 12x8 DSP that handled audio routing and processing. ‘The Radius processors are underrated but quite fantastic boxes,’ Jordan says. ‘What we liked about the Symetrix box was that it was open framework, which allowed us to customise the audio chain however we needed to. It is an enterprise-ready network device with a forward-thinking design-a great Swiss Army Knife at a good price point.’

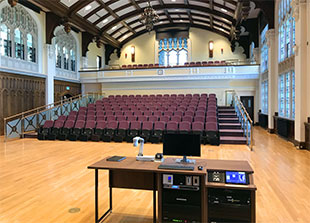

The Radius handles inputs from end users’ external analogue sources, a jackfield, Lectrosonics and Sennheiser wireless microphones, and HDMI audio from a Crestron DMPS presentation switcher. Other equipment included a 17ft-wide Stewart rear-projector screen and Epson L1500 laser-LCD data projector, a document camera, a customized rack computer and NEC confidence monitor, Solstice wireless A/V collaboration, and a Listen Technologies auditory assistive transmitter.
User control is facilitated by a 10-inch Crestron touch panel with a custom GUI created by Nick Beneteau, a member of Jordan’s team. Jordan’s philosophy was to use quality products but keep the system simple, since complexity was not needed. Thus, users were given only volume control over two subgroups: one for programme audio and one for microphones.
Everything was ready to go when classes started in Q3 2018. Kunz was not surprised that his exhaustive evaluation process resulted in Renkus-Heinz loudspeakers in Conron Hall. ‘I’ve always had great confidence in Renkus-Heinz as a problem-solver. When I can’t find a solution for a particular situation, I know Renkus-Heinz will have something that will suit the need.’
‘When we fired the system up, I knew by heart where the zones were from working with Dieter,’ Jordan says. ‘I ran around the hall speaking into a wireless mic and listening for where the zone cut-off points were, and everything lined up perfectly. Even at the back of the balcony, we had a direct transmission line from the drivers to the listeners’ ears, and it was totally clear. It was like magic. When a mathematical underpinning translates into actual experience, it becomes quite magical.’
