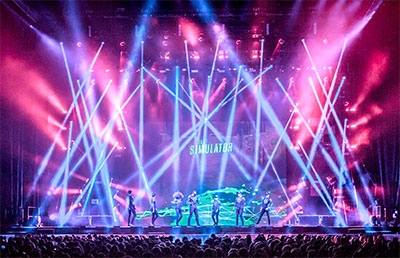

A core FOH loudspeaker set-up of just nine K-array Firenze KH8 panels per-side was all that was required for a performance by street dance troupe Diversity at London’s O2 Arena recently.
It was the first opportunity to prove the Firenze system in such a prestigious setting, and was described by Sam Nankivell, of UK distributor 2B Heard, as ‘representing change in the industry, in one of the most iconic live performance venues in the world, where systems are tried and tested’.
The Firenze system arrived at the O2 as part of Diversity’s current ten-date UK arena tour, staged by Production North with Audiotech Services supplying the audio and video systems. Upon arrival at the O2, the K-array system immediately impressed local crew members more used to a longer, more challenging set-up. It’s a lot quicker to rig than we’re used to,’ says Stage Miracles local crew member, John Cuckston, who aided in flying the straight hangs of KH8 panels – a significant health and safety benefit for local crew members.
The K-array Firenze system was used throughout the tour, taking in arenas including Glasgow’s SSE Hydro, Nottingham’s Motorpoint Arena, the Manchester Arena and Birmingham’s Barclaycard Arena. But it was at the O2 that the Firenze system – compact enough to occupy less than half of a truck for the entire tour – demonstrated its ability to confound expectations and impress in a world-class arena.
‘The last time I mixed front of house in the O2, I was running 18 boxes per-side,’ says Diversity FOH engineer, Christian Lewis. ‘This arena sized system is occupying less than half of an artic. It sounds as good as any other system I’ve used. In fact because of the shallow box design the response is instant and there’s plenty of top end. It’s all there. Indeed, regardless of volume, the dynamics remain constant.’
Based on a flat panel-design with directivity determined digital acoustic steering, each self-powered IP45-rated enclosure houses 16 neodymium transducers (eight 8-inch for LF, eight 4-inch for MF and four 1.4-inch high frequency compression drivers). Panels are anchored in pre-cabled groups of three for fast rigging and deployment, while entire systems are flown in a straight line, with the option to tilt panels as required.
Onboard each panel is an IP65-rated electronics module delivering eight channels of Powersoft DSP and amplification, using the Armonia platform for system EQ and control, and providing 2kW of power on each output. System optimisation to suit the venue can be achieved in minutes using AFMG’s Ease Focus software, which also forms the control interface for the creation of all required FIR algorithms, ensuring quick and simple operation over a single, trusted platform. Additionally, all of the Powersoft amplifier modules are IP addressable, enabling quick configuration updates.
The combination of all of the above is named Slim Array Technology (SAT) – quick to deploy, virtually invisible when flown, yet powerful enough to meet even the most challenging of environments.

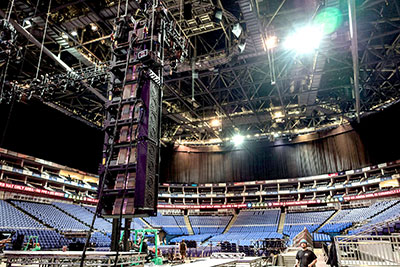

For Diversity at the O2, for which the upper balcony of the arena was blocked, the system comprised nine KH8 panels per-side plus side-hangs of two per-side KH7 elements, each containing four 12-inch coaxial drivers with rotating waveguides. On stage, two side fills were based on portable KR802 systems, while eight hard to spot KH2 panels lined the lip of the stage for front fill. A total of 12 IP65-rated KS8 subs provided low frequency support on the ground. Had the full arena been in use, only a further three KH8 panels per-side would have been required. A DiGiCo SD9 was used for both front of house and monitors.
At front of house during set-up was System Tech Sergey Becker: ‘The nine KH8 panels per side are all progressively down-tilted at 2°, but the angling only provides minimal adjustment – regardless of how the system is deployed, the software will sort out the coverage,’ he explains. ‘In terms of the venue’s acoustic challenges, the system minimises reflections and gives a lot of direct sound, and that helps a lot. But I think the biggest advantage is the system’s physical size and the ease of rigging, which is amazing. It’s all pre-cabled and I can actually fly it on my own. It’s impressive, the size and the power you get out of it.’
‘When you hear the Firenze system, you realise its designed, first and foremost, to sound fantastic,’ Nankivell adds. ‘Taking 20 minutes from unloading the system to flying it provides a real wow factor, but it was conceived to deliver excellent sound reproduction, and that’s precisely what it does.’
Standing at front of house, Christian Lewis agrees: ‘When everyone moved from using point source clusters to line arrays, it was a big difference, but people got used to that change. Now it feels like this is the next step in the evolution of speaker systems.’
