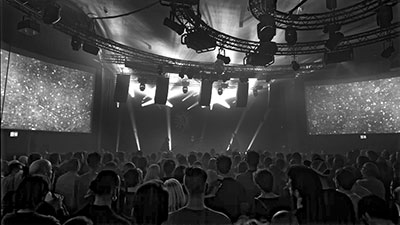

Located within one of Belgium’s most storied historic structures in the heart of Ghent, Club Wintercircus was conceived from the outset as a premium destination for both nightlife and live music – without compromise. When Viernulvier and Democrazy launched the project, their brief was for a best-in-class immersive audio experience, and was met by L-Acoustics L-ISA Immersive Hyperreal Sound.
L-Acoustics Certified Partner XLR won the public tender in 2024 with a design for a full object-based installation that places every person in the 550-capacity room at the centre of the performance. ‘When L-Acoustics developed L-ISA, it was exactly to answer this type of demand,’ explains XLR CEO, Louis Lukusa. ‘There was no doubt, this project represented the alignment of two shared visions focused on delivering an exceptional immersive experience.’
The Wintercircus building is a landmark in Ghent – a 19thC circular structure that is part of a larger heritage redevelopment project. The club itself, however, is entirely new, built with acoustics an intrinsic part of the design.
While architecturally striking, that geometry brings acoustic challenges. Reflections and standing waves meant that XLR had to model them carefully. Microphone positions during calibration were chosen with the room’s geometry in mind to achieve consistent coverage across the floor.
The structural demands went further still. With a venue designed for high SPLs for extended periods, mechanical isolation was non-negotiable. ‘The entire sound system needed to be fully isolated from the building structure,’ says Lukusa. ‘Every loudspeaker is mechanically decoupled from ceilings and walls to avoid vibration transfer and ensure complete acoustic isolation. This level of detail was essential to achieve a natural, balanced sound throughout the room.’
Soundvision, with its L-ISA extension, was central to the design process, allowing XLR to visualise spatial imaging, assess immersive coverage, and refine the system long before a single cabinet was hung.

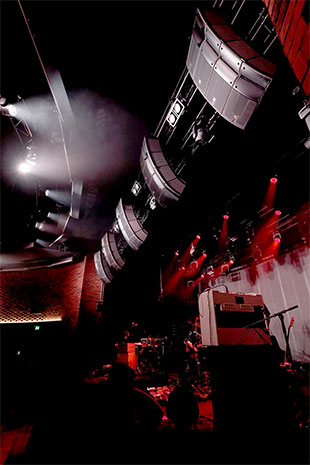

The main FOH configuration features five hangs of A10i loudspeakers, each comprising three A10i Focus and one A10i Wide – a combination that delivers even tonal coverage and consistent dispersion across the audience area. Subwoofers are positioned underneath the stage to keep them hidden from view while maintaining clean low-frequency reinforcement. Eight KS21i units, arranged in a lightly arced configuration, provide smooth bass distribution without compromising the venue’s visual aesthetic.
Immersion beyond the front plane is delivered by 11 X12 loudspeakers for surround reinforcement and 11 X8 units deployed as elevation channels, enabling precise object-based placement of sound in three dimensions. An L-ISA Processor drives the spatial engine, while the system is managed by three LA7.16i and one LA4X amplified controllers.
A P1 processor is used to bring a stereo input onto the Milan-AVB network, allowing visiting engineers to feed a simple left-right signal directly into the system when full immersive processing isn’t required. This provides a straightforward workflow for touring engineers while maintaining compatibility with the venue’s L-ISA configuration.
‘The goal was to deliver the same high-quality live sound experience to every listener,’ Lukusa says. ‘L-ISA enables artists and engineers to think differently about spatial mixing, creating a more natural connection between performer and audience.’
The system runs entirely on a Milan-AVB network backbone, managed via two LS10 switches and integrated into an Agora MK2 Ghost switch infrastructure that carries traffic via AVB, Dante and Allen & Heath’s proprietary gigaAce in a converged network over fully redundant 10-gigabit fibre. The AVB boundary clock built into the Agora switch ensures solid synchronisation across the network with imperceptible latency.
At the console, an Allen & Heath dLive desk handles source management and format conversion, feeding the L-ISA Processor via Madi. The result is a single unified ecosystem where all protocols coexist cleanly. ‘For us at XLR, Milan-AVB has become the standard whenever we work with L-Acoustics,’ says Lukusa. ‘Keeping the entire signal path in AVB ensures maximum stability, minimal latency, and full compatibility across the installation.’
The project timeline was demanding by any measure. XLR had five weeks to design, order, install, and commission the system, and deliver training to the venue’s technical team before opening night. They met it.
The in-house technical team of Stan and Oliver at Club at Wintercircus are, according to XLR’s project manager Vassili Golfidis, among the most capable and passionate technicians in the Belgian live sound scene. They embraced the system immediately, took full ownership from day one, and quickly became skilled L-ISA operators. ‘The technicians truly live and breathe the L-ISA experience – their enthusiasm and commitment match ours at XLR, and it shows in the way they operate and care for the system.’ Lukusa says.
The ripple effect has extended to touring engineers passing through the venue. Several chose to run their shows in L-ISA after experiencing the system firsthand – and the experience changed their approach to mixing entirely. ‘After experiencing object-based mixing, the engineers’ entire approach to mixing changed,’ Lukusa confirms.
‘From the very first stage of assessing the quality requirements and criteria leading to a new immersive sound design for Club Wintercircus, L-Acoustics proved to be our best choice,’ concludes Technical Director, Oliver Houttekiet. ‘The power of our immersive system, combined with our 360° projection capabilities, truly elevates you to a magical, all-encompassing experience that profoundly stimulates the senses and allows us to pursue the future of live entertainment. I stand fully behind our sound system choice and our collaboration with XLR Pro, knowing we can rely with complete confidence on outstanding service and the high-quality realisation of our immersive system. It is therefore a personal honour to represent Club Wintercircus.
