Active Audio reports the largest deployment to date of its intelligent, steerable StepArray SA180S column loudspeakers in a unique new sound system deployment at Leuven railway station in Flemish Brabant, Belgium.

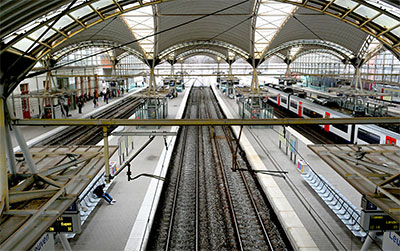

Originally constructed in the 1830s, the current station design dates back to 1875. Since 2000, it has undergone a series of renovations, including the addition of a roof designed by Philippe Samyn and Partners to resemble sails fluttering in the wind, sheltering the 13 railway lines underneath serving national and international destinations.

The complex acoustic environment created by this mix of architectural styles, as well as restrictions on how the loudspeakers could be installed, presented challenges for Active Audio and system integrator TVV Sound.

Arbane Groupe’s Eric Grandmougin, who defined the system’s specifications after modelling the acoustics of the station, Grandmougin explains that the design of the SA180S – which provides a 15m SPL of 97dB in a slimline 1,840mm × 124mm package – allowed his team to experiment with installing the loudspeakers horizontally, enabling them to work around the restrictions inherent in the space.

‘This new way of using Active Audio column loudspeakers was first tested and validated internally, before being integrated into an electroacoustic model of the station to predict the system’s overall performance,’ he says. ‘The results obtained were in line with the operator’s requirements, and validation listening sessions were carried out in Belgium at our distributor, TVV Sound. This project enabled us to validate the performance of the SA108S in a horizontal position, as well as the homogeneity of the directivity.’

‘Most of Leuven station’s platforms are covered by a high arched canopy, while some are covered by a low, flat roof,’ confirms Edo Dijkstra, CEO of TVV Sound, which was contracted by Infrabel, the Belgian public railway operator, to overhaul the previous 20-year-old PA system. ‘The renovation included the replacement of the existing loudspeakers under these canopies, both high and low. Architecturally, nothing was allowed to change the lay-out of the existing loudspeakers.’

In Leuven, the StepArray columns, in addition to being mounted in a horizontal orientation, were coupled together in 32 pairs of SA180S elements, helping TVV Sound to work around the space constraints while still being able to adjust the speakers’ directivity – an essential aspect of the installation, which needed to be capable of delivering clear public announcements, along with ambient background music, to more than 8m passengers annually passing through the station.

‘It was only with a beam steering system that we were able to achieve perfect sound reproduction,’ Dijkstra says, referring to the DGRC (Digital & Geometric Radiation Control) steering technology built in to the StepArray series, which was key to combatting the acoustic reflections produced by the station’s concrete and glass environment. DGRC uses a patented arrangement of speakers that reduces the number of amplifiers necessary to drive the loudspeaker system while still ensuring excellent directivity.

‘Active Audio’s StepArray loudspeakers are renowned for their optimal intelligibility and acoustic comfort,’ he adds, ‘and unique because of their controlled directivity. They are also the only company whose products can guarantee the horizontal beam steering we needed for the Leuven project.’

Eschewing traditional analogue networking, the Leuven installation makes use of Dante Audio-over-IP – a set-up made possible by the choice of Powersoft Quattrocanali 1204 DSP+D amplifiers, 32 of which power the 64 StepArray. DSP+D versions of the Quattrocanali, Powersoft’s flexible solution for small and medium-sized installations, allow full control of the amplifier, as well as system and load monitoring, via a PC running either Dante Controller or Powersoft’s ArmoníaPlus software.

Beyond the performance of its StepArray speakers, the Leuven project demonstrated the ability of Arbane Groupe to respond to the specific demands of a large-scale installation: ‘The horizontal use of the columns required mechanical adjustments to the loudspeakers in order to allow easy installation of the system, taking into account the specifics of railway stations, which are not very simple places in terms of integration,’ Grandmougin says.

Tom De Bie from Infrabel says the company is ‘very satisfied’ with the new system, which has been painted to match the station’s colour scheme. ‘The clarity of the audio provided to travellers has improved considerably.’

Dijkstra is similarly proud of what Active Audio and TVV Sound have achieved in such an acoustically challenging environment: ‘A station like Leuven, a unique building with complex acoustics, requires a more complex sound system to achieve the required quality. As is clear from the result, StepArray, with its versatility and unique DGRC technology, is that sound system.’
