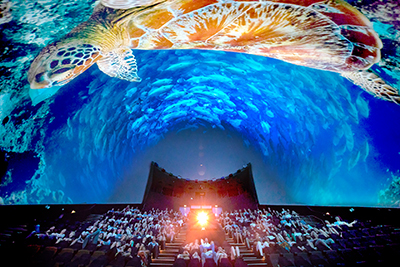

Opened in 1984, Omniversum in The Hague was the first IMAX Dome theatre in Europe. Showing spectacular films on a giant domed screen that makes the audience feel part of the movie, a new, €1m projection system has now improved the experience, with a new Alcons Audio pro-ribbon loudspeaker system also having been installed.

Built in the mid-1970s, Omniversum features an 840m² dome, 300 seats and sees around 240,000 visitors a year. It is the largest film theatre in the Netherlands and the only IMAX Dome theatre in the Benelux countries. Many of the films it shows educate and inform audiences about the natural world, and promote treating the Earth and everything that lives on it with respect. However, the recent upgrade to its technical systems has been a key part of embracing ‘regular’ cinema productions as well.

The Alcons Audio pro-ribbon installation complements a new Evans & Sutherland ESX projection system, which uses a blended array of five Christie D4K40 RGB laser projectors with unique auto-alignment and auto-blending technology to produce a seamless, uniform image across the 23m diameter dome.

Delivering high-quality sound reinforcement in a dome-shaped room like Omniversum provided many challenges. These included acoustic issues, because the large projection surface also creates a lot of rearward reflection from the speakers, as well as making sure every seat in the audience enjoys full coverage with direct sound and that every member of the audience hears all audio channels, so they experience the intended sound imaging.

‘When we decided to spend over a million Euros on a new projection system, we knew the investment would not be worth the money if we did not also invest in the best sound system,’ says Omniversum Executive Director, Berend Reijnhoudt. ‘After looking at several options, we chose the Alcons pro-ribbon solution because it was the best choice for us to complement a unique visual experience.’

The system was installed by Delft-based Westamp Geluid. ‘While measuring the acoustic responses of the space, we decided to reposition the speakers into different clusters. This would achieve better differentiation between close-field and far-field,’ says the company’s owner and engineer Robert van Deursen. ‘It made the sound far less diffused than before, resulting in much better stereo imaging, in relation to the position of the source on the screen, throughout the room.’

The Alcons system comprises 23 CRS8 (RBN401 4-inch pro-ribbon HF, 8-inch LF) large-format reference surround speakers and eight 15-inch conversion woofers for the cinema’s existing subwoofers, which were an earlier design by the Alcons Audio R&D team. It is powered and controlled by three Sentinel3 amplified loudspeaker controllers.

‘We wanted to feature a wider range of programmes, which meant our already-wide range of visitors would become even wider,’ says Omniversum Technical Manager, Robby Rampersad. ‘Our shows have average sound pressure levels; they are not too excessive in loudness, but occasionally still very dynamic. With this as the basic requirement, I discovered Alcons pro-ribbon systems and was immediately convinced by them.

‘The CRS8 is a great speaker, with a very smooth but powerful mid-high frequency response. The few corrections I had to do were all due to the acoustics, screen and clustering,’ he says. ‘The choice between the different dispersion patterns for the CRS8 was very useful, as it meant we could achieve minimum reflective spill. ‘The result is very, very good; the sound is clean and clear throughout the entire bandwidth, thanks to the pro-ribbon driver’s linear, distortion-free response. It is a delight for the ears.’

‘When we reopened with the new system on 1 July this year, we knew we had made the right choice,’ Reijnhoudt agrees. ‘People really notice the superb sound, they are walking up to us after the film saying how much they enjoyed the audio. But it’s not only the audience that notice the difference in the sound between us and other film theatres; it also impresses professionals who come to experience our new state-of-the-art projection system.’

More: www.alconsaudio.com
