L-Acoustics L-ISA spatialisation gives the impression of a real orchestra in front of the 1,500 spectators of A Pluma y Espada De Vuelta

A theme park with no rides, Puy du Fou still manages to attract more than 2m visitors to its vast historical reproduction theme park in Western France. With themes spanning Viking and Roman times to Richelieu, Revolution and Resistance, the park installed its first L-Acoustics sound system in 2000, became an early adopter of L-ISA Hyperreal Sound technology in 2016, added L-Acoustics to the prestigious Puy du Fou Club of Partners in 2017 and today, the entire park is equipped with L-Acoustics sound.

In 2017, when plans were revealed to open Puy du Fou España, L-Acoustics was asked to bring its trusted audio formula to the massive new Toledo site. A €200m investment brought Puy du Fou España to life for its 2019 ribbon-cutting, including the unveiling of the first show, El Sueño de Toledo, billed as ‘the biggest show in Spain.’

The experience transports visitors through 1,500 years of Spanish history performed by 200 actors, with knights in armour, staged fights, fireworks, and parades set with a huge crenellated backdrop. A show which aims to transport an audience of 5,000 from the discovery of America to the arrival of the railway demanded substantial sound reinforcement – which is provided by an immersive sound configuration, comprising 25 K2 elements, nine Kara, and ten KS28 subs covering the entire arena.

The 2021 opening of the park sees four new shows added – El Último Cantar, A Pluma y Espada, Allende la mar Océana and Cetreria de Reyes, with El Último Cantar benefitting from an L-ISA Immersive Hyperreal installation.

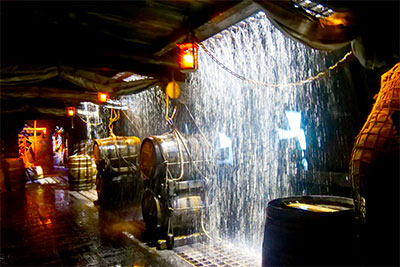

The power for Allende la Mar Océana’s storm scene is provided by L-Acoustics X12, X8, A15 Wide, KS21 and 5XT‘We applied the same design principles in Spain as we did in Puy du Fou France – the successful technical formula of the park is repeated, but with clear cultural differences in its theming,’ says Arnaud Delorme, L-Acoustics Head of Application, Installation.

Delorme worked alongside Puy du Fou’s in-house technical team, including Mix Engineer Samuel Briand, Integrator Ugo Poletto, and onsite Sound Technician Daniel Garcia.

El Último Cantar is a sword-swinging show featuring jousting and singers. The tale of legendary El Cid is brought to life with 24 clusters of A15 Wide and Focus accompanied by 5XT coaxials providing front fill. The loudspeakers are positioned around a rotating, 2,400-seat platform, which revolves to reveal multiple stages around its circumference, the largest of which features a large swimming pool representing the sea.

An array of eight KS21 subs beneath the audience seating ensures the lowest rumbles of battle are realistically conveyed with a high level of directivity control. ‘This is a fully immersive L-ISA 24.1 Hyperreal mix, with an encoder that sends OSC messages to tell the L-ISA Processor at which angle the seating is rotating,’ Delorme says. ‘The processor controls 24 objects, one for each cluster piloting them to turn with the seating assembly.’

The audience area is covered by nine hangs of A15, a mixture of Focus and Wide loudspeakers, and four KS28 in a central cluster above the 40m-wide stage in a front L-ISA configuration, all powered by an L-ISA Processor. Six A10i Wide dotted around and behind the audience provide surround sound, and eight X8 for front fill and a further two A15 per side in horizontal configuration for out fill to ensure coverage of the lateral audience while minimising interference with the L-ISA zone.

‘There is orchestral music throughout the show, and the L-ISA spatialisation gives the impression of a real orchestra in front of the 1,500 spectators,’ explains Delorme. ‘In addition to the music, the Hyperreal technology allows the sound to follow the action on the stage naturally. From left-to-right, front-to-back – wherever the action is, the sound is there, too, with the 360° immersive set-up bringing the action scenes to life.’

Allende la mar Océana is a walk-through journey telling the story of Christopher Columbus’ discovery of the New World, featuring special effects to allow visitors to experience the sensations of the high seas and the bustle of the port of Palos before the crew set sail. Installed here are 150 coaxial enclosures and subs, from X4i to A15, and additional subs, each on a separate channel, controlled by LA4X amplified controllers. Visitors enter through an outside area, and their journey continues through 21 rooms, with the L-Acoustics ecosystem ensuring storytelling continuity. M1 measurement software allows for standardised response curves and levels wherever the speakers are integrated into the scenes. Almost a thousand measurements were needed, something that could not have been achieved before M1 was released last year.

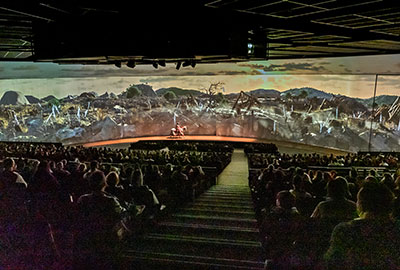

El Último Cantar’s centrally rotating, 2,400-seat platform

‘Because the enclosures need to be hidden, the smaller they are the better. But they still needed to be sufficient depending on the objective,’ says Briand. ‘For the storm on the high seas, there are a total of four X12, four X8, then two A15 Wide, four KS21, and 5XT in a room that’s 5m wide and 10m deep. The boat is sinking, so it’s quite a stressful experience, and there’s a lot of power here. In the library, where you take just five or six steps to complete the room, there are still seven cabinets, but smaller-sized, because we wanted to produce a more realistic and refined ambiance.’

‘The stars of the show are the birds,’ Delorme observes of Cetreria de Reyes, where eagles, hawks and owls fly alongside herons and vultures among the audience. ‘Our mandate here was to achieve power, bandwidth, homogeneity and quality – all within a limited space and a corresponding limited number of enclosures.’

Two tiers of identical audience seating areas are positioned on opposite sides of the arena. Each tier has two clusters of one each A15 Wide and Focus with three LR KS21 positioned on observation towers at each side of the arena. A central stack of Kara II is used to convey the powerful show narrative. Three A10 per side are situated at the back of the seating for surround.

‘We needed a lot of LF and power, intelligibility, and bandwidth for the narrative,’ explains Briand. ‘Thanks to signal routing and equalisation via the M1 suite of measurement tools from L-Acoustics, we could deliver coherency between the centre and the sides.’

Following the success of the past two seasons, the addition of the new shows meant that Puy du Fou España opened its doors in April to much anticipation, which has been more than equalled.

‘It took more than 40 years to build Puy du Fou France to one of the world’s leading theme parks. L-Acoustics played a key role in achieving that success, especially in pioneering immersive audio to create an unforgettable experience,’ concludes Poletto. ‘We’ve been able to apply our decades of experience to Puy du Fou España, and the immediate success of the audio systems throughout is undeniable. Audiences already appreciate exceptional audio throughout the park, with L-ISA technology adding to the feeling of being right in the middle of history.’

More: www.l-acoustics.com
