CB Electronics has announced the XP-Relay32, XP-Relay32X and XP-Relay64 digitally-controlled relay patchbays.
The XP-Relay32/32X and 64 is a software-controlled relay patchbay that integrates with professional audio set-ups, offering relay-based signal routing with a transparent audio path controlled via the intuitive XPatch4 App, extensive connectivity, scalable configurations and robust reliability without generating heat or requiring a fan.
The patchbay’s ability to route audio with transparency is achieved this through a matrix of high-quality relays, ensuring the signal path remains as pure as a direct cable connection. The relay-based switching system ensures the routing process does not affect the integrity of the signal for demanding studio environments.

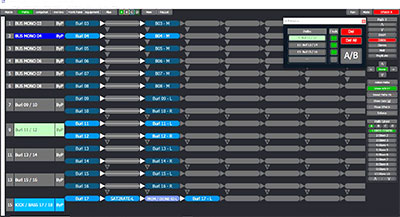

XP-Relay is configured and managed by the intuitive XPatch4 App available for Windows and macOS. The XPatch4 APP controls up to four XP-Relay or XPatch units via USB, or Ethernet. XPatch4 allows creation and management of complex routing chains, including mults, mono-to-stereo conversions, inserts, signal processors, and AB groups.
Users can save and recall configurations instantly, enabling real-time adjustments, preset configuration and storage of complex routing set-ups.
By treating hardware audio processors like digital plug-ins, XP-Relay enables users to drag and drop devices in sophisticated routing chains that can be edited, auditioned and recalled at any time. Once configured, the last-used routing loads instantly upon power-up, minimising downtime and maximising efficiency.
Using telecom-grade relay technology rated for millions of cycles, XP-Relay promises long-term reliability and ultra-low power consumption. The absence of active electronics in the signal path allows for the transmission of mic-level sources, phantom power, control voltage, digital audio and Nidi without degradation. Routing changes are confirmed by the soft click of a physical relay, providing haptic feedback.
The rear panel features DB25 connectors offering 32x32, 32x32 upgradeable to 64x64 and 64x64 channels of input and output, while the front panel offers two XLR/TRS combi jacks inputs, and two XLR outputs for quick auditioning of equipment. Up to four units can be together using the DB25’s and set up as Send/Returns for larger systems.
Designed to eliminate the interruptions associated with manual patching, XP-Relay ensures fluid session transitions and uninterrupted creativity. It operates silently and requires no cooling fans, making it a direct replacement for conventional patchbays. The units integrates with large-scale TT patchbay systems by connecting existing patchbays to one or more of the rear DB25’s for a versatile scalable solution in professional studios requiring advanced routing capabilities.
‘Since the release of the XP-Relay in 2022, we have had user requests for a larger matrix version of the XP-Relay,’ the UK company says. ‘We listened to the user requests and feedback and have designed three larger XP-Relay units, the XP-Relay32/32X and 64.’
