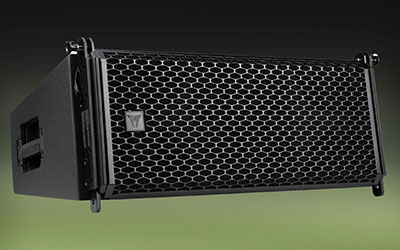

The TT+ Audio GTX 10P is a two-way line array module with 70° × 15° narrow coverage for medium-sized touring and install applications where high scalability and fast deployment are required. Equipped with three best-in-class transducers, it claims excellent reproduction quality and optimised directivity.
To maximise throw capability, the GTX 10P provides a narrower 70° horizontal dispersion compared to the standard GTX 10’s 100°. By concentrating high-frequency energy into a tighter angle, the GTX 10P delivers higher SPL over distance, extending the effective throw of the system. Arrays composed entirely of GTX 10P modules are recommended when wide horizontal coverage is not required, helping reduce unwanted reflections from side walls or nearby boundaries.
The sturdy weather-resistant birch multi-ply enclosure with durable Polyurea coating features optimised hardware for speed and efficiency, with a rear hinge bar mechanism that slips into the angle preset position when hoisting the array. The optional cart (Model# KRT-WH 002) allows transport of four GTX 10P enclosures, with custom-designed protective covers for safe handling.
Up to 24 GTX 10 modules can be suspended on a single fly-bar.
Key features:
- 143dB max SPL.
- 4inch titanium dome, neo compression driver.
- Two 10-inch neodimium woofers, 3-inch voice coil.
- 70° x 15° 4PATH waveguide.
- Designed to operate with XPS 16K amplifier (up to 6 modules per).
- Tour-tested, weather-resistant plywood enclosure with durable polyurea coating.
- Heavy-duty, powder coated, custom perforated front grille.
- Three P-Com 8 pole bayonet connectors (Gold plated, CA-COM compatible, IP 68).
More: www.ttaudio.com
