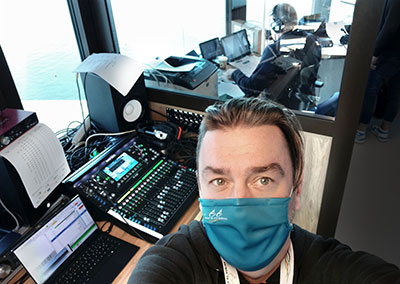

An Allen & Heath SQ-5 console was in the thick of the action at the World Rowing Championships, held on Lake Malta in Poznan, Poland in October, as audio engineer, Marcin Baran from MTS Studio chose the compact SQ-5 to handle all live and streaming sound, including eight commentary channels in multiple languages, wireless mics for the medal ceremonies and music playback.
The SQ-5 was fitted with an SLink card, giving Marcin the additional SLink port necessary to support independent GX4816 and DX168 I/O expanders – one of which fed the various zones of the lakeside complex, while the second fed the main PA in the medals area as well as multiple speaker zones in the stands, with help from the built-in delays on the SQ’s buses. Further mixes were sent to commentators’ headphones, to two separate live streams and an OB van.
As heats started on the far side of the lake and ended 2km from the spectators, a key challenge was to give fans in the grandstands and viewers at home a sense of immersion in the races. A submix of ambient mics captured the waterside sounds and starting signal from the start line, sent via analogue cables laid under the lakebed many years ago. The signal proved quite noisy, so Marcin connected a laptop running Waves X-Noise Native via SQ’s USB port to identify and tackle the problem frequencies. Once the boats were underway, feeds from ambient mics from cameras mounted on a boat following the athletes kept the audience in contact with the action on the lake.
With so many different elements to stay across, automation and streamlining of workflows were essential. ‘I created one group for all commentators that didn’t feed into any of the mixes but triggered the duckers on all music inputs,’ Marcin explains. ‘I used an analogue Bettermaker mastering limiter for the streaming and I used eight instances of SQ’s DynEQ4 dynamic EQ on all the commentator channels. With the mixer set up in this way, everything practically mixed itself, leaving my hands free to look after the music. For me, the SQ is a small, handy mixer with enormous possibilities. I love using this mixer on tour with bands, also SQ-5 is the heart of my mobile recording studio set-up.’
The championships ran over three days, with The Netherlands heading the 17 nations on the medals table.
