Puerto Rico’s WKAQ has embarked on the next phase of audio equipment upgrades with a Dante-enabled Sennheiser Digital 6000 wireless microphone system and facility-wide networked antenna installation.

‘WKAQ wanted talent to be able to walk from Studio 1 all the way through the hallways and rear corridors to Studio 8 and have perfect, broadcast-quality coverage all the way,’ explains Sennheiser Customer Development and Application Engineering for the Americas, Andrew Kornstein. ‘It was a very complex requirement. This is not just something that we have in the catalogue.’

Devised, installed and commissioned by the San Juan-based AVL Group and custom-designed by Sennheiser, the new system provides wireless microphone coverage throughout the building’s eight television studios and outdoor production areas.

Part of the Telemundo Group, WKAQ-TV wanted to be able to access any production audio source in the building from any control room. Those sources can include the on-air talent, who sometimes move between studios.

'Now, with Sennheiser’s facility-wide coverage seamlessly covering the studios, hallway, lobby and outdoor areas, they don’t have to switch microphones, because the whole system is on a network,’ AVL Group Vice President Alexander Rojas reports.

With the networked Sennheiser set-up, each control room is no longer limited to the number of wireless microphone channels installed in the studio but can scale the system up if a production demands it. ‘It’s just a matter of audio routing,’ says Rojas.

Following Kornstein’s initial site visits and consultation with AVL Group, Michel Morrisette, Customer Development & Application Engineering at Sennheiser’s Montreal office, drew up a system design to meet WKAQ’s requirements. In all, the networked antenna system comprises 20 Sennheiser A 2003-UHF passive directional antennas and six A 1031-U passive omni-directional antennas. An equipment rack centrally located in the main hallway interconnects the distributed antenna system and the wireless microphone receiver racks through a series of ASA 214 antenna splitters, ACA 3 antenna combiners and AB 3700 broadband antenna boosters. The racks also house custom connector panels designed and built by Morrisette.

There are three wireless microphone receiver racks, one in Studio 2 that also serves Studio 1, another in Studio 3 that also serves Studios 4 and 5, and a third in Studio 8. Studios 6 and 7, which share a control room, are currently unused. AVL Group pulled more than 8,000ft of cable for the project, reports Freddie A Rojas, who led the firm’s post-sales engineering and commissioning team.

AVL Group also delivered 22 Sennheiser EM 6000 Dante two-channel digital receivers plus 14 SKM 6000 handheld transmitters topped by MMD 945 dynamic super-cardioid capsules to WKAQ. Thirty-two MKE 1 miniature clip-on lavalier microphones are paired with 29 SK 6000 pocket transmitters, with three SK 6212 mini-bodypack transmitters additionally available for female on-air talent. All of the equipment uses rechargeable batteries and Sennheiser’s L 6000 rackmount chargers, says Alexander Rojas.

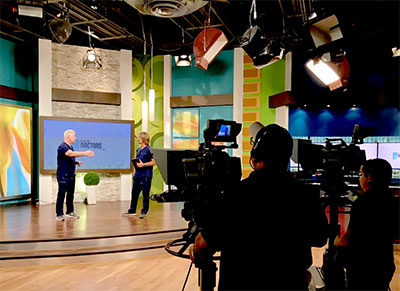

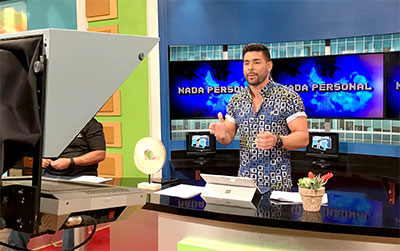

Studios 1-5 are used to produce WKAQ’s original programming, which includes a weekly comedy sketch show, game shows, an entertainment news show and political news analysis. Studio 8 is used daily for multiple daytime and nightly newscasts as well as a variety and interview show.

A number of the shows also make use of some of the public areas of WKAQ’s building in their productions. ‘There is a large hallway that they wanted to sometimes use on the game shows,’ says Alexander Rojas. ‘Also, the cameras can go into the front yard, which is quite nice, and they also do things in the parking lots.’ As part of this project, AVL Group also prewired the rear parking lot, he says.

WKAQ had previously standardised on Sennheiser’s 2000 series analogue wireless system. ‘They’ve been a Sennheiser house for more than ten years,’ reports Alexander Rojas. Maximising WKAQ’s prior investment, some of the existing 2000 series antennas were incorporated into the new antenna system. The station also retained an EM 2050 twin analogue receiver for use with one show host’s custom-fitted microphone.

The Sennheiser digital wireless project was implemented in three phases, beginning with the wiring, which was done during the week of Thanksgiving 2019. The second phase, installation and commissioning in the individual studios, was completed by year’s end. ‘After that, it was just a matter of coordinating with the customer in order to train the technicians so they could go on-air without stopping any of their productions.’

Puerto Rican industrialist Ángel Ramos founded WKAQ-TV in 1954. In keeping with Ramos’ other endeavours, which included the El Mundo newspaper and his first radio station, WKAQ (known as Radio El Mundo), the station was named Telemundo. Ramos sold WKAQ-TV in 1983, and a merger several years later saw its name adopted by the NetSpan Spanish-language TV network, which rebranded as the Telemundo Group.

More: www.sennheiser.com
