TS-15

South Korea’s KBS public broadcaster has upgraded TV production facilities at its headquarters in Seoul, with IP technology from Lawo as part of an extensive renovation project. The installation, which includes two new Lawo consoles – an mc²96 Grand Production Console and an mc²36 ‘all-in-one’ console – is part of KBS’ move to a completely new IP-based production workflow.

KBS’ new Lawo mixing consoles replace systems that were no longer able to meet requirements for current and future productions. Like all Lawo broadcast products, the mc²96 and mc²36 mixers are native IP consoles, with Ravenna/AES67 built in for industry-standard networking, flexibility, scalability and efficiency.

The new set-up also includes Lawo Dallis stagebox interfaces, and a Nova routing system. System integration was provided by Lawo’s Korean partner, Dong Yang Digital, who successfully conducted a remote Factory Acceptance Test in June, working with KBS engineers and Lawo technical staff in Rastatt, Germany. The project was completed in early August.

‘We are positive that we have made the right choice in embracing IP as the basis for our technical upgrade, and we are very pleased with the quality of the first TV productions mastered using our new Lawo systems,’ says Choi, HyoSub, Head of KBS’ TS-15 audio production team, ‘The new IP infrastructure gives us full access to all audio resources on demand, without having to perform changes physically like we used to. The new infrastructure is very flexible and efficient – it definitely makes our lives easier.’

KBS‘We are honoured that KBS chose us to provide services, expertise and the best equipment on the market for this important project,’ says Dong Yang Digital Director, Myoungho Seo. ‘Knowing that KBS can now unleash all their creative powers freely to produce major televised music and entertainment programs makes me very happy.’

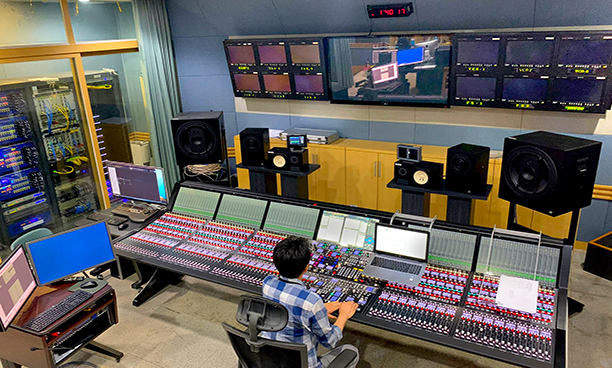

The 88-fader mc²96, Lawo’s flagship production console, is now installed as KBS’ main mixing console in the completely renovated production complex. Optimised for IP-based video production, it boasts more than 300 DSP channels plus SoundGrid integration, and is the first large-scale digital mixing console deployed to mix concerts at a KBS site. The music programmes and concerts, as well as KBS TV drama, entertainment and film award ceremonies, are produced in the TS-15 SRC with live audiences in an open-studio concept.

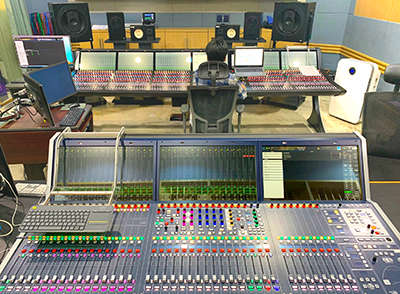

Its companion, the 40-fader Lawo mc²36, takes over mixing of live studio performances, and also serves as sub-mixer and backup mixer for the mc²96.

In addition to the new consoles, the facility’s renovation included full replacement of the KBS TV concert hall stage and audio infrastructure – including the main loudspeaker system – using a Lawo Nova73 router for mic/gain control for each console, Madi connection for FOH and monitor mix consoles, and comprehensive Ravenna integration with full operational redundancy. Two modular Lawo Dallis I/O units are configured as stageboxes, the first providing 112 mic/line inputs while the second handles 44 AES3 digital inputs.

The global pandemic crisis prevented in-person commissioning of the new equipment, so installation, configuration and FAT (Factory Acceptance Testing) was conducted using the remote procedures recently developed by Lawo. According to Myoungho Seo, this went smoothly, with all phases of the project running to schedule.

Following to the requirements of the TS-15 audio production team, system configuration was undertaken by Lawo engineers. KBS’ audio production team reviewed the captured video clips created by Lawo’s team, and then oversaw the hardware status and configuration test online during a live, remote joint technical session. The remote tools Lawo offers, like mxGUI remote control, in combination with computers and webcams, proved the solution for the installation and configuration as well as training sessions during the course of the project.

‘KBS’ TV production facility & tech management teams were impressed,’ says Seo. ‘DYD and Lawo joined forces with KBS to achieve the desired result: a successful project, finalised on time, providing a custom installation ready for immediate use in major audio productions.’
