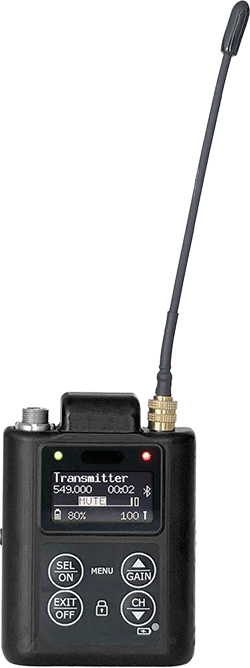

Wisycom has added the MTP61 Transmitter to its Symphony product line, for location sound and theatre use.
Reckoned to be the smallest and lightest multiband bodypack transmitter on the market by its manufacturer, and to have the widest tuning range currently available (470 to 1260MHz), the MTP61 was created in direct response to market demands.
’A cross between our MTP41 and MTP60 transmitters, the MTP61 incorporates the advanced technology of our Symphony line in a smaller form factor,’ says Wisycom Product Marketing Manager, Geoff Baynard. ‘This includes seamless connectivity via long-range Bluetooth 5 to the Wisycom App, enabling users to monitor and adjust parameters in real time, from anywhere wthin a venue.”
Using the Wisycom App to control the device also eliminates the need for network connectivity. Further, the MTP61 can also be configured by operators directly through the module’s high-contrast OLED display with front-panel navigation buttons for quick and easy access to menus and shortcuts.
At just over two inches tall, just under two inches wide, and 3.1 ounces in weight (with battery), the Wisycom MTP61 is comfortable for long-term use in applications that require discreet placement. It uses a flexible PCB for durability and operates with a standard 3.7V lithium-ion battery, offing eight hours’ use.
Building on Wisycom’s proprietary intermodulation cancellation circuit, the transmitter’s linear technology eliminates distortion. This provides a robust signal, extended range and the ability to operate multiple transmitters in close proximity to one another. With high-density, software-selectable narrow-band filters, the FPGA-based signal processing allows for easy switching between wideband and narrow-band operation. Used together with ‘linear mode,’ this function enables intermod-free frequency planning with as little as 200kHz of channel spacing. Additionally, the integrated low-pass audio filter eliminates ultrasonic interference from devices, such as range finders and motion sensors.
The transmitter also features a max input level of 26dBu, with 15.5V clip, for direct connection to mixers and instruments. Its embedded recorder with integrated linear time-code decoder makes it possible to record directly to an embedded industry-standard micro-SD memory card. Simultaneous record and transmit functionality is also available, where applicable.
More: www.wisycom.com
