Audio Precision has released v6.1 software for the APx500 audio measurement system, adding new measurement results, options and test signals for production testing of loudspeakers, headphone drivers and microphones.

For designers and manufacturers of loudspeaker drivers and products incorporating them, APx software now offers the broadest set of methodologies available for detecting rub and buzz defects.

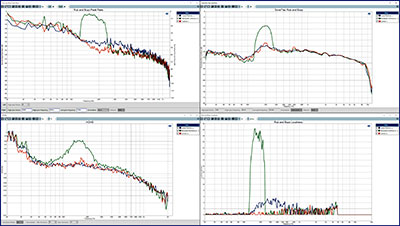

Rub & Buzz example plots‘Rub and buzz’ is commonly used to describe any one of several possible manufacturing defects that cause undesirable noises to be emitted during speaker operation. The most common defect categories are rub, buzz, and air leaks. Rub-related noises occur when the speaker cone is off-centre or canted and thus mechanically rubs when it moves to create sound.

Buzz defects occur when loose particulate matter – chipped magnet material, bits of glue and similar – are trapped in the gap between a driver’s voice coil and cone. Air leaks are commonly perforations in the cone surround, imperfectly sealed dust caps, or other unintentional gaps in the housing or cabinet.

As an audible defect in a driver or device incorporating a loudspeaker, rub and buzz presents several challenges to device manufacturers. First, it is a subjective issue, with little broad-based agreement on how much is too much – the noises created by a specific defect can be perceived very differently by different listeners. Compounding the issue is the level of distortion in a typical speaker is far greater, and more diverse, than in a typical electronic device and can mask these defects. This latter point means the standard audio measurements of Frequency Response and Distortion will only detect the most severe cases of rub and buzz.

To address this issue, several different rub and buzz detection methodologies have been developed within the industry: various approaches using high-pass tracking filters, distortion-orientated methods that focus only on high-order harmonics, and techniques applying human hearing-based algorithms to the distortion signal. While all these methods are applicable to rub and buzz detection, no single method has achieved uniform adoption in the industry.

With the release of APx500 software version 6.1, Audio Precision offers the broadest set of rub and buzz defect detection methodologies available to speaker designers and manufacturers:

Rub & Buzz – Previously available in APx software, this method uses high-pass tracking filters to remove the fundamental signal and detect defects as excursions in the residual waveform’s crest factor or peak ratio.

SoneTrac (new with v6.1) – A Bose-developed improvement to  Rub & Buzz, SoneTrac filters the residual signal and ratios it to the RMS of the total signal to reduce the noisiness of the measurement result.

High-Order Harmonic Distortion (HOHD; new with v6.1) – A classic method for rub and buzz detection, HOHD uses the THD (Total Harmonic Distortion) ratio but only of harmonics above the 10th, 10-35, 20-200, etc., which is a simple way to account for frequency masking effects.

Rub & Buzz Loudness (new with v6.1) – Applies a psycho-acoustic loudness model to the residual signal to calculate the perceived level of the rub and buzz based on well-established models human perception.

To support the addition of the HOHD and Rub & Buzz Loudness measurements, AP is introducing the Fast Sweep signal with APx500 release v6.1. Fast Sweep is an extremely fast stepped frequency sweep with no input or output ranging between steps, continuous transition between steps to minimise transient effects, and has a total sweep time that rivals the speed of a logarithmically-swept sine (chirp) signal. A few of the advantages of the Fast Sweep are the lack of transient ripples at low or high frequencies, the ability to sweep from low-to-high or high-to-low frequency, the support for measuring harmonics above the 20th, and precise control of the number of discrete points used in measurements.

In addition to the expanded selection of rub and buzz methods, as well as the new Fast Sweep stimulus, APx500 release v6.1 now allows users to switch instantly between IEC and IEEE THD calculation modes for harmonic distortion results.

Version 6.1 also adds the ability to normalize harmonic distortion results, addressing common measurement artefacts that occur when testing loudspeakers. Users can now also save all acquired waveform, impulse response, or cross-correlations results to .wav files, and this function can be included as a sequence step in automated measurement sequences.

‘While v6.1 is officially a minor release, and thus a free upgrade to any analyser licensed for v6.0, it delivers significant, new capabilities, especially for those involved in the design, manufacture, and test of speaker drivers and any product incorporating them,’ says Daniel Knighten, Audio Precision General Manager. ‘Simply put, APx audio measurement software now offers the broadest set of rub and buzz defect detection methodologies available.’

With this latest release, new APx audio analysers will ship with v6.1 software. Each new analyser includes one year of software maintenance, effectively licensing that instrument for APx v7.0 when it is released (as well as any minor 6.x releases that occur prior to v7.0). Release v6.1 is a no-cost upgrade for any analyser licensed for v6.0 and users need only download v6.1 from the AP website.

Software upgrades are available for owners of Legacy APx analysers, with options for upgrading from v4.x (or earlier) to v5.0, from v4.x to 6.0, and v5.0 to v6.0. Software maintenance contracts are available for instruments licensed for the current release (v6.0), entitling the analyser to one, three, or five additional major software releases depending upon the contract purchased.

Release 6.1 is compatible with all analysers in the APx500 Series. An APx KeyBox is required to run v6.1 on Legacy APx analysers. APx KeyBoxes already installed on legacy analysers (for v4.6 and 5.0), are also compatible with v6.1 and only require an updated licence file once an upgrade is purchased.
