Waves Audio InPhase

Waves Audio has released two plug-ins designed to restore phase coherence between recorded audio tracks. InPhase includes mono, stereo and dedicated live components, while InPhase LT is a simplified version that allows 'creative phase manipulation'.

Phasing errors can cause drops in volume and compromise frequency response and stereo imaging. Among features designed to address these issues, InPhase has high-resolution dual waveform displays; phase shift filters with adjustable frequency and Q; and an intuitive correlation meter that shows how much tracks are in, or out, of phase.

Waveforms can be adjusted manually or by using the delay control, and they can be aligned in relation to a sidechain input. InPhase includes mono, stereo, and dedicated live components plus InPhase LT, a simplified version that gives you easy access to creative phase manipulation.

Key features:

Dual waveform displays update in real time according to processing.
Move waveforms manually along the timeline.
Align tracks in relation to an external sidechain input.
Pure delay control to compensate for timing differences.
Phase shift curve window shows users the phase shift curve across the frequency line.
Correlation meter shows how much tracks are in or out of phase.
Mono and stereo components, and dedicated live components.
InPhase LT with simplified controls also available.

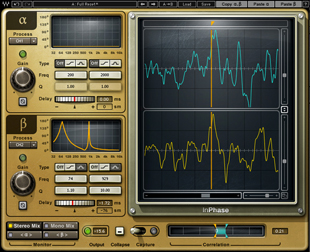

InPhase controls:

Alpha and Beta processing sections.
Process controls let us choose what to process.
Activity LED shows when there is input signal activity.
Gain controls the level of the signal going into the processing section.
Phase Invert flips the phase by 180°.
Phase Shift Curve Window displays the phase shift curve across the frequency line.
Type sets the phase shift curve, and toggles between Off, Shelf and Bell.
Frequency selects the frequency at which the phase shift is 90° using the 1st order allpass filter, and 180° using the second-order all-pass filter.
Q sets the width of the Bell (second-order all-pass filter).
Delay moves the signal up to 20ms in either direction. (Live components forward only.)
Monitor selects the output monitor configuration.
Output LED displays the peak signal output level.
Collapse closes the waveform display section.
Capture, with Automatic & Manual modes, captures up to two seconds of signal.
Scroll Bar scrolls the x axis of the captured waveform.
Correlation Meter displays general correlation metering between the Alpha and Beta waveforms.
Correlation Markers display the maximum value of the correlation meter.
Correlation Value Box displays the current correlation value.
Zoom X zooms in on the x axis, at up to sample resolution.
Zoom Y Alpha zooms in on the Alpha section y (amplitude) axis.
Zoom Y Beta zooms in on the Beta section y (amplitude) axis.
Zoom Y Link links Zoom Y Alpha and Zoom Y Beta.
Reset Zoom resets the zoom to its default setting.
Alpha Waveform is the waveform captured in the Alpha section.
Beta Waveform is the waveform captured in the Beta section.

InPhase LT controls:

Gain controls the level of the signal going into the processing section.
Phase Invert flips the phase by 180°.
Phase Shift Curve Window displays the phase shift curve across the frequency line.
Type sets the phase shift curve, and toggles between Off, Shelf and Bell.
Frequency selects the frequency at which the phase shift is 90° using a first-order all-pass filter, and 180° using a second-order all-pass filter.
Q sets the width of the Bell (second-order allpass filter).
Delay moves the signal up to 20ms in either direction. (Live components forward only.)
Output LED displays the peak signal output level.

More: www.waves.com
