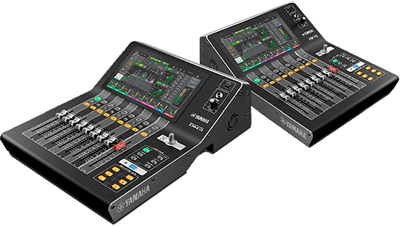

Yamaha has added the DM3 series of digital mixers to its professional audio line. With both Dante-compatible and non-Dante models available, Yamaha’s most compact digital mixing consoles are suited to a range of applications.
The DM3 series supports up to 96kHz resolution and offers simple set-up and ease of operation in a chassis measuring 320mm x 140mm x 455mm and weighing 6.5kg. The series presently comprises two DM3 mixers– the DM3, which features Dante audio networking for quick and flexible connection to a wide range of compatible audio devices, and the DM3 Standard without Dante.
Other than Dante, the features on both models are identical, including 16 mono, one stereo and two FX Return input mixing channels, plus six Mix Send, two FX Send, one stereo, and two matrix output mixing channels.

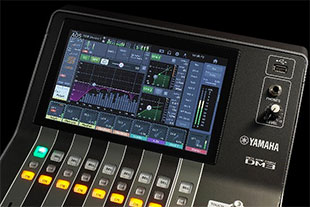

With low latency and two high-quality processors featuring 18 types of effects, a simple, intuitive user interface is centred around a, 9-inch screen with multi-touch control. Features include the choice of languages for channel names (using the DM3 Editor or DM3 StageMix) displayed on a light or dark background.
With custom fader banks and MonitorMix support for personal monitor mixing, The DM3 allows a variety of live sound applications, from simple presentations and conferences to live bands and multi-performer events. The DM3 is also suited to use as a sub-mixer for a Dante-compatible main console.
The DM3 series is also a portable, full-specification music production tool, covering all the bases for recording and editing needs, thanks to an included 18-input/18-output USB audio interface and DAW Remote functionality.
Multitrack recording via USB to Host is supported, while simple two-track recording is also possible using a USB memory stick and a separate USB connector on the front panel. The Dante-capable DM3 adds further multitrack recording capability using Dante Virtual Soundcard. Meanwhile, the DAW Remote function means a range of DAWs can be controlled from the console. Recordings can then be edited with the bundled Cubase AI software or the DAW of the user’s choice.
DM3 consoles include all the features needed for high-quality streaming. With stereo and matrices, the audio routing gives users exceptional freedom and allows the creation of separate mixes for on-site and streaming sound.
Another key market for the DM3 series is in fixed installation. Both consoles support OSC and Midi (via USB) general-purpose external control protocols and User Account, User Defined Key and Custom Fader Bank can be used to configure settings for users. The consoles are compatible with Yamaha’s ProVisionaire software suite, which allows the creation of bespoke control panels, tailored to the needs of remote control and installation monitoring. Meanwhile, the optional RK-DM3 can be used to mount either unit in 13U of a standard 19-inch equipment rack.
The DM3 series is complemented by software applications that include DM3 Editor, a standalone Windows or Mac application for both online operation and offline set up and editing, and DM3 StageMix, an iPad app that enables remote control of the DM3 Series via a simple interface, allowing an engineer to control mix parameters from a performer’s position on the stage. The MonitorMix application for iOS and Android devices puts control of each performer’s monitor mix in their hand.
To help significantly reduce set-up time, both models are equipped with a wide range of scene presets, based on different usages. They also feature QuickPro Presets parameters, for a variety of microphones and output equipment, created in cooperation with well-respected engineers and major manufacturers. These can be used as they are or as a starting point for further adjustment.
‘The DM3 series sets a new standard for compact console performance, offering superb sound quality, fast set-up, straightforward operation and professional level features for live sound, streaming, live or home recording, music production and fixed installations – a combination unmatched in any other mixing console of this size,’ says Yamaha Global Marketing & Sales Professional Solutions Division General Manager, Thomas Hemery. ‘In an ever-changing world which constantly presents new challenges as well as opportunities, DM3 series mixing consoles give users the power and flexibility to do more with a compact digital console.’
More: www.yamaha.com
