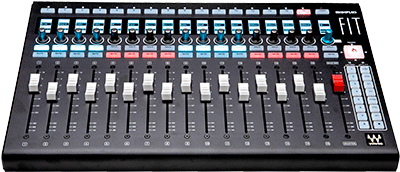

Waves Audio has announced the Waves Fit Controller for its eMotion LV1 Live Mixer – an intuitive control surface that delivers quick and efficient operation of the eMotion LV1 mixer to live sound engineers who prefer tactile response of faders, knobs and buttons for console operations.

Waves Fit is designed to function as a fully integrated 16-fader bank with the LV1 mixer. This is made possible with 16+1 motorised 100mm faders, each featuring Mute, Solo and Select buttons, a multi-function rotary control and a bright display for each channel. Fader banks are controlled using eight dedicated layer switches for toggling between the eight factory or custom layers in the eMotion LV1. The channel rotary controls can be set to adjust preamp gain or pan per channel with the corresponding function label shown in the display. In addition, the 16 Select channel toggles can be set to User mode to provide easy access to Mute Groups and user-assignable keys.

The Fit controller also provides audio engineers with a Tap Tempo pad and a Touch & Turn knob for controlling any parameter selected on the eMotion LV1 screen. Additionally, common LV1 functions and modes can be controlled from the Utility section – Rotary mode selector, Save Session, Load Next Scene, Load Previous Scene, Store Scene, Alt/Ctrl and custom toggle.

This compact controller weighs 4.5lb and can be fitted with rack ears to mount into a 19-inch 7U-high rack space. Rear panel connections include a USB Type B port for computer connection, 12V 2A DC power input, and two 5V 0.5A USB outlets for external LED lighting.

More: www.waves.com/hardware/midiplus-fit-controller-for-emotion-lv1
