JBL Professional has added suspension hardware accessories to its VerTec subcompact line arrays – the line now includes the VT4886-SF Short Frame, the VT4886-HB Horizontal Bar, and VT4886-DF88 and VT4886-DF89 Downfill Frames.

‘Since its launch a year ago, the VT4886 has become known as an all-purpose type of loudspeaker with many different uses, from single standalone fill speakers to complex, mixed full-range and subwoofer arrays,’ says Paul Bauman, Director of Tour Sound Product and Application Engineering. ‘The introduction of these new suspension accessories will complement this speaker’s flexibility by opening up a world of new application possibilities from a sound design perspective. In many ways, the accessories “make the product” for a loudspeaker as versatile as the VT4886.’

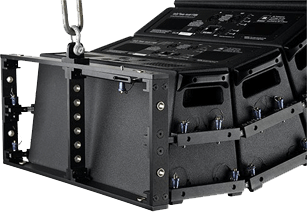

VerTec suspensionThe VT4886-SF Short Frame suspends VT4886 arrays by coupling to existing integrated hardware on the VerTec enclosures, and works well when limited space is available above or behind the array due to wall surfaces or venue obstructions. Weighing 5.6kg (12.8lb), the machined- aluminum frame with receiver blocks is fitted with steel quick-release pins and restraining lanyards. A pullback point enables attachment to the bottom of an array to enable radical downward angles. The VT4886-HB Horizontal Bar can suspend up to six horizontally-oriented VT4886 line array elements, enabling the assembly of constant-coverage arrays that are useful for center fill and other applications.

The VT4886-DF88 and VT4886-DF89 Downfill Frames each support up to eight VT4886 subcompact line array elements. The VT4886-DF88 connects the elements beneath midsize VT4888 full-range or VT4882 subwoofer arrays, while the VT4886-DF89 suspends the elements beneath full-size VT4889/VT4889-1 full-range or VT4880/VT4880A subwoofer arrays.  The two strong, lightweight downfill frames weigh in at 11.3kg (25lb) and 13.4kg (29.5lb), respectively.

More: www.jblpro.com
