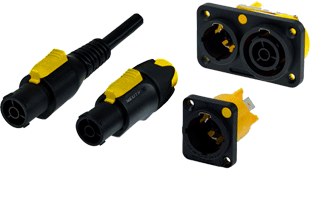

Neutrik’s powerCON True1 AC power connector is a lockable, robust connector for use with single-phase connectors, and among the first of its kind to feature IEC 60320 breaking capacity.

Neutrik’s powerCON True1Designed for 16A, 250V, it is well suited to sound systems for concerts and stage productions where he electrical equipment is often confined to a small area, making safety a top priority. It is a complete system – including inlet and outlet couplers for easy daisy chaining of equipment – that also provides for high-density requirements with its duplex chassis connector combining an inlet and outlet coupler. Thanks to its high-breaking capacity, large amounts of electrical equipment can be connected without the risk of interruptions to the current causing electric arcing.

‘The quality and reliability of the powerCON True1 makes it the perfect fit for the entire Neutrik portfolio of power connectors,’ says Peter Milbery, President of Neutrik USA. ‘It’s a complete system, which makes it easy to transport from venue to venue and, due to its high-breaking capabilities, can carry one of the highest currents available very safely. Performance professionals can rely on it to help fit more electric gear into a smaller space, without ever compromising on safety.’

The new connector is available for self-termination or as a ready-made cord set. The cord set, with over-molded cable connectors, offers protection class IP65 in the mated condition. Neutrik’s highly reliable Twist-Lock locking system prevents inadvertent disconnection.

The powerCON True1 connector is the latest addition to Neutrik’s powerCON series of locking three-conductor equipment AC connectors, and the first to offer IEC 60320 breaking capacity. With contacts for line, neutral and pre-mating ground contact, the powerCON series replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. In addition to PowerCON True1, the line includes the PowerCON 20 A and 32 A models.
