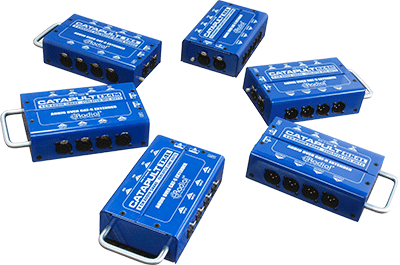

Radial Engineering’s Catapult is a four-channel audio snake supporting the transmission of analogue and AES digital audio over standard Cat5 shielded twisted-pair cable.
Catapult enables system contractors to use pre-wired networks to connect one room to another, and allows stage techs to take advantage of the relatively low cost of this abundantly available cable for return snakes or for transporting channels of balanced audio across a large stage.
Available in six configurations, Catapult features a choice of three input modules and three output modules. Each input module features four XLR inputs along with two Neutrik Ethercon outputs and four additional XLR outputs. Output modules feature Ethercon input, throughput and two sets of XLR outputs. These may be ordered without transformers for sub snakes or to transmit AES audio signals; with mic isolation transformers for signal splitting between FOH, monitors or the recording system; or with line level isolation transformers to eliminate system noise. A ground lift switch is available at each end for the Ethernet cable connection to help eliminate hum and buzz caused by ground loops.
As with all Radial units, the Catapult design uses a heavy steel construction to handle the rigors of live touring along with a heavy-duty powder coat finish. A protective bar around the connectors keeps protects them and serves as a carrying handle.
More: www.radialeng.com
