Klotz ais has extended its TrussLink DMX Stagebox range with the introduction of the DMXV Series incorporating XLR 5p jacks connected in parallel.
The DMXV TrussLink Stagebox Series not only handles audio, but also DMX signals combined is professional stagebox. The lightweight but extremely robust aluminium housing is powder-coated black and features abrasion-resistant laser engraving. It accommodates eight or 12 channels and RMP multi-pin connectors to MIL-C-5015 standard.
The paired Neutrik XLR 5p. chassis jacks with hard gold-plated contacts can be used as inputs or outputs. Maximum flexibility is offered by the 12-channel version DMXV-04FM, which provides eight channels with XLR 5p and four channels with XLR 3p sockets. Thus, in addition to the eight DMX channels via XLR 5p, four channels can also be used for DMX via XLR 3p, AES/EBU or analogue microphone and line audio signals.
DMXV TrussLink stageboxes can be used both on the floor and in a rig. For these purposes, the housing is equipped with non-slip rubber feet, an M10 thread on the bottom and four eyelets for safety ropes.

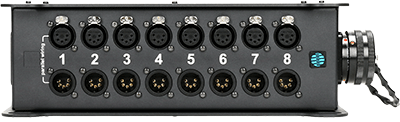

The TrussLink DMX Stagebox is available in the following variants: the DMXV-0808F (eight XLR 5p F/M and one RMP 25p F); DMXV-0808M (eight XLR 5p F/M and one RMP 25p M); DMXV-0808MF (eight XLR 5p F/M and RMP 25p F/M); DMXV-04FM (eight XLR 5p F/M, four XLR 3p F/M and two RMP 37p F/M); DMXV-1212M (12 XLR 5p F/M and one RMP 37p M) and the DMXV-1212MF (12 XLR 5p F/M and two RMP 37p F/M).
