Stage Tec has announced the Nexus Fiber and IP-Interface (XFIP) – the result of the collaboration between DirectOut and Stage Tec.

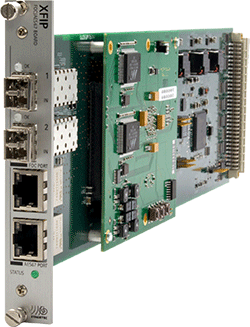

Stage Tec Nexus Fiber and IP-Interface (XFIP)

In terms of IP connections, the XFIP is the equivalent of the RIF67 (Router Interface AES67). The board uses DirectOut’s AES67.IO module – which has a full AES67 implementation – to supports the creation of a non-proprietary audio network via an Audio-over-IP connection in Stage Tec Nexus Base Devices.

Each XFIP supports up to 256 channels in and 256 channels out on the Nexus side. It is equipped with an AES67.IO module. This module can process AoIP with up to 256 channels in a maximum of 32 streams. The XFIP supports redundant audio transmission as per SMPTE 2022-7 Seamless Protection Switching, and offers a Ravenna implementation. In addition to the AES67.IO module, the XFIP also comes with two SFP ports for future applications.

Configuration of the XFIP’s AES67 interface is via a web interface, with status monitoring through Nexus. XFIP is a plug-and-play device, which means the network identifies it automatically and configures it for use. Like all Stage Tec products, the XFIP is backwards compatible and can be used in legacy Nexus systems.

‘We offer the Nexus Fibre and IP Interface to customers when they require small, cost-effective audio networks without a Nexus Star router,’ explains Stage Tec Head of Sales, Alexander Nemes. ‘If customers do have a Star router, but have no room for additional boards, they can use XFIP as an alternative the XFIP also follows the recommendations of the standards-based AIMS Roadmap with the SMPTE ST 2110 goal.’

Stage Tec has been offering IP-based technology since 2012 with the Nexus Dante XDIP board. Developed by the Australian manufacturer Audinate, the Dante system makes it possible to construct powerful audio and media networks on an existing Ethernet infrastructure using TCP/IP. The XDIP supports up to 64 bidirectional audio channels and is also AES67 compliant.

More: www.stagetec.com
