Ally Pally

Opened in 1873 as a grand Victorian public gesture, ‘the people’s Palace’, Alexandra Palace has been marked by fires, restoration, substantial war-time damage, charitable rescue, and many political sagas. After 80 years of slumber and two years of careful restoration, however, Alexandra Palace Theatre has reopened following several years of restoration.

As part of the process, a complete technical infrastructure had to be installed, including a substantial L-Acoustics Kara PA system and DiGiCo SD12 mixing console that brings a fitting quality of sound to the restored space.

The Alexandra Theatre was originally opened in 1875 and hosted pantomime, opera, drama and ballet but struggled to compete with the the West End. Subsequently, it was used as a cinema, a chapel, home of music hall stars and, latterly, as a BBC prop store and workshop.

DiGiCo SD12 mixing consoleThe theatre itself is part of Ally Pally’s East Wing. It had an original capacity of 3,000 and the stage was a marvel of Victorian engineering, incorporating a variety of innovative stage machinery. The BBC leased the Palace in 1935 and the theatre went unused until performances started again in 2004, in a limited way, though it wasn’t until 2012 that the Alexandra Palace and Park Trust contemplated a thorough restoration of the building, starting with the East Wing and the theatre. Work began in 2016 and the new Alexandra Palace Theatre opened in December 2018.

One of the people brought in to help the project through reconstruction and on to a healthy, 900-capacity commercial theatre was Steve Brookes, now Head of Production & Technical at the venue. His aim was to bring a full, modern production infrastructure to the space so that no company or touring production would hesitate to perform at the Palace, but at the same time to honour the heritage of the building.

‘There were restrictions,’ he says. ‘While the theatre itself is Grade II listed, the stage is Grade I listed, meaning it cannot be demolished, extended, or altered without special permission. However, it had to be strengthened and is now supported with a sympathetic scaffold structure. Then it was a case of bringing in all the systems that we needed; PA, lighting and trussing.’

Ally Pally

The audio system was supplied and installed by HD Pro Audio under the direction of the company’s Andy Huffer: ‘Andy and the team at HD have been a huge help,’ notes Brookes. ‘Although audio isn’t my main area of expertise I have always had a preference for L-Acoustics. Andy’s input has been invaluable, and I was pleased that we have been able to install an amazing system that works so well in this room.’

‘Before my arrival, there wasn’t any kind of production infrastructure at Alexandra Palace – the Great Hall, which hosts many concerts, is a receiving house and doesn’t require permanent facilities,’ Brookes explains.

He needed a system that would not only satisfy engineers on arrival, but also to attract productions to the space. The DiGiCo SD12 and SD-Rack, along with an L-Acoustics Kara loudspeaker system and Sennheiser micrs, were top of his list.

‘Audio isn’t my speciality, but I had heard a lot about the SD12. I conferred with my geekier friends, weighed up the pros and cons, price included, and the SD12 was the best fit,’ he continues. ‘Also, it’s on most riders and the majority of engineers are familiar with it, so anyone on this sort of circuit will be able to work with it easily, which is really important.’

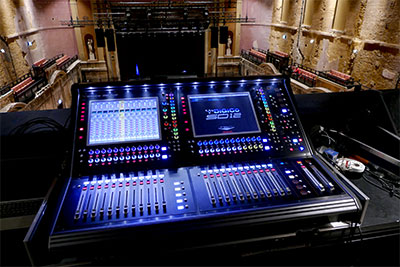

The SD12 sits at the front-of-house position, which is in a gallery high up in the rear of the auditorium, and is connected to the SD-Rack via Optocore. It has proved such a hit that there are plans to add an SD11 as a monitor desk during the second round of procurement which, Steve says, is being chosen for easy integration into the existing system. Its ultra-compact size will allow it to sit neatly next to the stage and its portability means it can double as a satellite desk in other areas around the site.

‘The key for incoming productions is to make it as attractive and as easy as possible for them,’ Brookes observes concludes. ‘That’s what we were aiming for and, with the help of HD Pro and the equipment they have installed, we have certainly achieved it.’

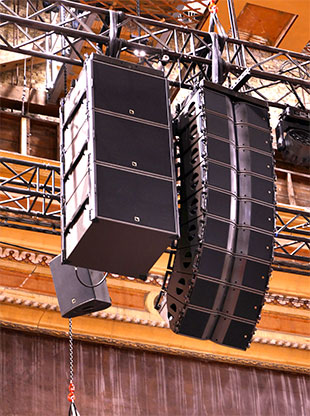

The PA system was designed in conjunction with L-Acoustics, settling on an optimum combination that worked both in terms of budget and coverage of the auditorium. The system comprises two hangs of nine Kara flanked by three SB18 subs, with two X15 HiQ as out fill. The system is powered by four LA4X and three LA12X amplified controllers, which are housed backstage in custom-built racks.

A P1 AVB processor - an EQ station, delay and dynamics processor - takes the FOH console inputs and links to the amplifiers with AVB. Seven X12 provide stage monitoring with an SB18 as drum fill, all run from two LA4X in a custom mobile rack.

Ally Pally‘L-Acoustics did the final tuning of the system, which is perfectly balanced for the room,’ Brookes says. ‘There isn’t the need for much EQ as we have the right placement and the right type of boxes. We have achieved complete coverage, with the main arrays pretty much doing the entire room, with six 5XT for lower SPL shows, or six X8 for louder shows, providing fill for the front few rows. This means there’s no need for additional, confusing sources.’

‘It sounds beautiful in here,’ adds Huffer, who also notes the advantages of the L-Acoustics brand to a theatre when it comes to bookings: ‘Any rider you get coming through, they are first or second on everything, which means no one will say they don’t want to use it.’

‘It is having such flexibility that makes this a space people will want to hire that’s the key thing for any incoming production wanting to come into these venues,’ Brookes concludes. ‘If it’s nice and simple and you’ve got a box-ticking PA, it just makes the whole thing a lot easier.’
