Commissioned by the Asia Culture Center in Gwangju, South Korea, Light Barrier is series of installations of ‘viewer-less images’, that aims to ‘create paintings outside of perspective’. For the third installation in the series, the Kimchi and Chips studio behind the project looked to Junghoon Pi, Professor of Music & Sound Design at Seoul Institute of the Arts, owing to his work with TiMax.

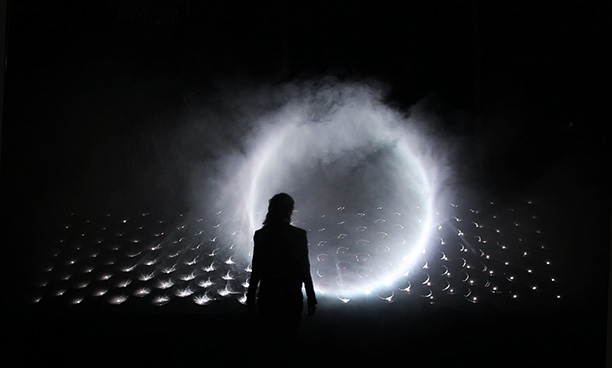

Light Barrier is inspired by impressionist painting, and uses a multi-segment mirror system to split beams from eight video projectors into 630 projection elements, which in turn create a total of 16 million pixel beams. Each mirror creates a group of light beams that form animated mid-air images in the heavily hazed space, all varying in both the physical and time domains.
To add the audio element, Pi employed a TiMax SoundHub immersive audio processor to create an immersive soundscape rendered and distributed by a 16-channel TiMax SoundHub dynamic spatial audio matrix. Forty channels of audio support the six-minute sequence, which employs the motif of the circle to travel through themes of birth, death, and rebirth, helping shift the audience into a new perception of existence.
The installation comprises 20 full-range loudspeakers driven by TiMax, with sources fed from an SSL Live L300 mixing desk. Rigged at a height of 7m and supported by six ground-stacked sub bass units, four of the speakers are positioned behind the mirror structure. At the far end of the 70m hall, a further four speakers correspond, and six delay pairs in between complete the distributed system. The sub-bass units are spread out down the length of the room. The audio stems are created and played from Ableton connected to the desk via RME MADIface XT.
In TiMax, Pi was able to create multiple Image Definition spatial audio objects and use them to render dynamically shifting three-dimensional sonic layers. Cue sequences were launched by Midi triggers, and seamlessly blended across designated groups of loudspeakers within the array.
‘TiMax was perfect for moving sounds from one loudspeaker zone to another,’ he says. ‘It really is so easy and effective with TiMax to create sound movements through multiple speaker zones: just intuitive and simple. TiMax has the freedom to use any kind of loudspeakers and Timeline cue playback is comfortable to me.
‘I’ve used TiMax since I was introduced to the product by [US sound designer] Scott Lehrer in a workshop in Seoul, and as Professor at the Seoul Institute I teach TiMax on the sound design degree course. Kimchi and Chips’ Light Barrier was the perfect opportunity to flex the capabilities of TiMax to its fullest.’
