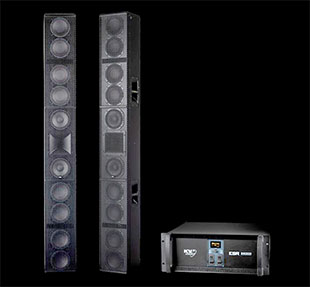

KV2 Audio has extended its ESR Series with the ESR106 loudspeaker and its dedicated ESR2600D amplifier based on proprietary SLA technology.
The ESR Series was developed for a niche in the market requiring an all-in-one box to deliver clear, detailed reproduction over a wide area. Intended applications include theatres, houses of worship, cultural/performance centres and concert halls where they are likely to be used vertically. When mounted horizontally, ESR Series loudspeakers provide consistent coverage over a tiered seating area for stadium or grandstand type applications.
Like its siblings, ESR212, ESR215MkII and ESR215S, the slimline ESR106 is an active-driven three-way system. It uses a unique column array of multiple 6-inch woofers for high-quality vocal and music reproduction in challenging acoustical spaces and ambient environments. Loaded with eight 6-inch woofers, two 6-inch mid/bass woofers and a single 1-inch HF driver mounted on a wide dispersion horn, the ESR106 is constructed to represent one large point source, with each part of the system positioned so that it is proportional in size to the wavelength it produces, thus the radiated power of each band remains consistent and balanced throughout the system’s overall frequency range.
The ESR106 has a controlled coverage at low and mid frequencies to reduce indoor reflections. The discreet, low-profile cabinet incorporates multiple fixing points for external brackets and flyware. However, unlike its siblings, ESR106 may only be used vertically.
The ESR106 is accompanied by the ESR2600D amplifier, a two channel (stereo) three-way, active control and amplification system housing all signal processing and amplification in a 4U-high module, as well as providing control and crossover functions for adding external subwoofer cabinets if required, using external amplifiers. In stereo mode, ESR2600D powers two ESR106s and is configurable directly via the front panel, or remotely using the KV2 Control & Diagnostics Tool.
More: www.kv2audio.com
