Currently active in eight locations around the world, the Abbey Road Institute continues the studios’ mission to train the coming generation of recording engineers. Facilities in London, Berlin, Frankfurt, Munich, Melbourne, Sydney, Paris and Amsterdam offer both part-time courses and a full-time, 12-month course leading to an Advanced Diploma in Music Production & Sound Engineering, aimed at students aged 18 and over.

All six facilities are equipped with the latest in studio gear, with Focusrite RedNet Dante audio-over-IP networked audio interfaces providing and a central part of their set-up.

Frankfurt facility manager Ulrich Schiller planned not only the Frankfurt facility, but also those in Berlin, determining the number and type of rooms in the facility and its complement of equipment, and working with acoustic designer Jochen Veith of JV-acoustics.

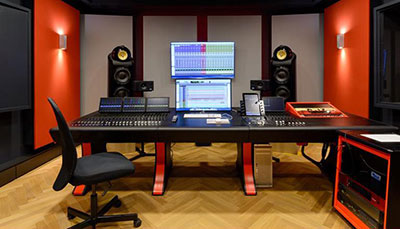

The Frankfurt institure has four live rooms and four control rooms. All computers run the same set of DAW software and plug-ins, focusing on Pro Tools but also including Logic and Ableton Live. The smallest control room is Studio 4, a production suite, with a Macintosh computer, monitors and keyboards. Studio 3 contains a 32-channel Avid S6 configured for stereo and surround operation, plus B&W and PMC monitors. Studio 2 features a 32-channel API 1608 console, while Studio 1 is based around a vintage 64-channel 1989 SSL 4064 G+.

The decision to incorporate RedNet into Abbey Road Institute’s operation was taken early on by CTO Silvan Jongerius, who saw the benefits of being able to connect audio interfaces to a standard Ethernet network running round the building. ‘The co-operation between ARI and Focusrite was also due in part to the involvement of Focusrite Executive Chairman,Phil Dudderidge, who has been deeply involved in audio education for decades,’ Ulrich says.

‘Abbey Road Institute chose Focusrite Rednet in order to give its students access to high-quality products and to provide extensive flexibility to create their music productions. Additionally, it allows them to gain a greater understanding of working in decentralised workspaces along with the system’s revolutionary networking capabilities, which will prepare them even better for the future.’

Studio 1 was the first to be equipped with RedNet, as Schiller regarded Avid units expensive and wanted to explore an alternative: ‘I wanted to see if it was possible to solve these multitrack problems with Focusrite,’ he says. ‘I tried it and it’s proved to be extremely effective. We have one RedNet 2 (16-in/16-out) and two RedNet 1 (8-in/8-out) units for 32 tracks to and from tape, working with the SSL. We have only 3ms latency and it works very well.

‘The system sounds excellent,’ he adds. ‘The decision to use the Focusrite systems was clear.’

In addition to the control room installation, the live room for Studio 1 includes a pair of RedNet 4 units offering a total of 16 remote-controlled mic/line inputs to the SSL.



Studio 3, with its Avid S6 system, has the other major RedNet installation, with one RedNet 4 (eight remote-controlled mic/line inputs), a RedNet 1 (8-in/8-out) and a RedNet 5 Bridge to get RedNet audio in and out of the Avid system.

Each of the studios has its own RedNet installation, and while they are all on the same physical network, they are actually operated as self-contained studio/control room systems, separated by means of managed switches and VLANs. However, there is a large performance area and it would be entirely possible for a band in that room to be recorded simultaneously in all three of the main control rooms, simply by reconfiguring the network topology. Schiller’s aim is to be able to clock the entire system from a central, highly stable word clock feeding the RedNet 5, although he notes that there will be times where different parts of the network will need to operate at different sample rates, which can be handled by using the VLAN system to separate off individual parts of the network.

It’s also possible for a whole class to work on the same material by accessing performances over the network: ‘We are equipping every classroom with 24 Apple computers,’ says Schiller, ‘each with the Dante Virtual Sound Card, so if there is a drummer playing in the live room, for example, everyone can record the drum set simultaneously.’

RedNet has also been useful in surround-sound applications. ‘In Studio 3, With the Avid S6 system, we have 5.1 mixing and monitoring. We installed a Red 1 to handle the surround outputs, and it’s perfect for the application.’



The RedNet systems were installed in March 2016, with the present configuration adopted in August. ‘They work really, really well,’ Schiller reports. ‘They sound very, very good – it’s the Focusrite style. And I think the converters are very, very good, with no artefacts.’ As far as the networked audio aspect of the system is concerned, Schiller believes that the future is clear, citing Dante’s flexibility. ‘I think Dante will be an industry standard over the coming years,’ he says.
