Big, bright and bold, the US$84m venue, the new Smart Financial Centre at Sugar Land performing arts centre in Texas opened with a touring production of Dirty Dancing and appearances from Jerry Seinfeld, Don Henley, Dave Matthews and Reba McEntire.
Combining duties as a concert hall, civic centre and theatrical centre in a single shape-adjusting venue, it also features an L-Acoustics K2 line array system installed by LD Systems and designed by consultant Scott Bray of Wrightson, Johnson, Haddon & Williams, Inc. (WJHW).

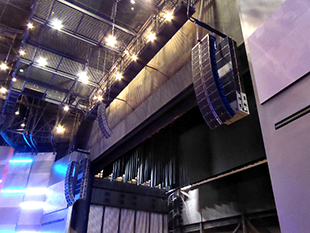

The new venue’s sound system uses a theatrical LCR design – 13 K2 enclosures make up the left and right array hangs, with eight SB28 subs flown behind each of those arrays, while the central cluster is made up of 12 Kara enclosures. In addition, there are five delay arrays of six Kara enclosures each suspended over the balcony. A flexible Kara front fill system uses up to eight Kara enclosures along the stage lip for front fill coverage. All of these are powered by 22 LA8 and four LA4X amplified controllers housed in LA-Rak racks.
Flanking masonry walls cradle a glazed façade designed to reveal the iconic bowl-shaped arena within, but one able to adapt to performance and audience requirements. Its largest configuration of 6,500 seats can be adjusted, using deployable walls alongside balconies, which extend down to the orchestra floor, to 4,600 seats for smaller shows and civic events. At 2,900 seats, the hall presents an elegant theatrical experience for the patrons of Broadway shows and holiday spectacles.
‘This is a premier performance venue for the entire region, so they wanted the absolute best sound possible, and they got it,’ says LD Sales Engineer, Kevin Broussard.
The K2/Kara system suits the facility’s variable seating design, notes WJHW design consultant Scott Bray. Using L-Acoustics’ Soundvision predictive 3D system design software and LA Network Manager, the WJHW team was able to calibrate the system based on the position of the movable walls and curtains – three primary room configurations in all – as well as automatically move delay speakers in and out of the system on chain hoists, all at the push of a button.
L-Acoustics’ Soundvision predictive 3D system design software gave WJHW a highly accurate model of what each configuration would need in terms of EQ and delays before the first speaker was put in place; the system was then fine-tuned on site. ‘We felt confident that what we saw in Soundvision is what we’d hear in the venue, and that’s exactly what happened,’ says Bray. ‘We needed highly accurate pattern control, to keep the sound on the seating no matter what the configuration was. We were able to get hold of Soundvision 3.0, and map out perfect coverage patterns.’
He also notes that the K2’s rider friendliness had a huge impact on the decision. ‘Artists know the L-Acoustics K2,’ he says. ‘You’d have a hard time finding an engineer who wasn’t familiar with the system.’
Broussard points out that, while the K2 is designed as a touring rig, it works exceptionally well as an installed sound system, one with the advantage of being able to be hoisted by a dedicated winch for maintenance. ‘The arrays can be flown and then lowered or raised as necessary,’ he says. ‘That’s another level of flexibility for this system.’
But both Broussard and Bray – and everyone else who has heard the system – have first and foremost praised its sound quality. ‘It just sounds incredible,’ Broussard says. ‘Very punchy but never losing articulation.’ Bray agrees, ‘It’s just fantastic sounding,’ he says, adding the ultimate sound-system compliment. ‘It’s like listening to a really good stereo system.’
