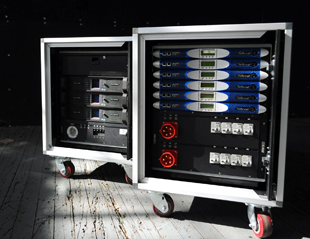

EAW has launched the Powercube line of amplifier racks.

Designed to complement EAW’s line array systems, each rack includes electrical power distribution, 12 channels of amplifier power with integrated digital signal processing and 12-channel input and output.

Powercubes house either three Lab.gruppen PLM20000Q/SP amplifiers or six Powersoft K10 DSP+AESOP amplifiers – these are shipped separately from the respective manufacturers for user installation on delivery. Powercubes come in 115V and 230V options, making four options in total. Electrical power distribution panels are separately configured for each of the four possible options.

Powercubes are optimised for use with EAW KF740 line array systems and the largest of the EAW subwoofer systems, but can also power and control KF760 or KF730 line array systems.

Powercubes feature a 24U-high rack in a shock-absorbing cage to house the power distribution, amplifiers and input and output panels. Electrical power distribution panels include standard, three-phase input connectors and circuit breaker protected outputs configured to support each amplifier compliment.

The input panels allow maximum flexibility without switching the connectors. The input panels provide analog connections with loop through, AES connections with parallel loop through and dual Ethernet ports for loop through the amplifier’s digital network. Selectable ground lifts located on each analogue input allow it to be linked to the next successive input in series, allowing a single input to drive multiple channels of a multi-amp system.

Similarly, Powercube output panels feature both Neutrik NL4 connectors and NL8 connectors that combine amplifier outputs. This allows Powercubes to drive KF760s, KF740s or KF730s without ever rewiring the rack.

Powercubes include amenities that make them easy to work with under difficult conditions. All models feature a Littlite gooseneck lamp on the back of each rack for easy patching and configuration in dark areas. They include easily accessible courtesy power outlets appropriate to their voltage to power personal electronics or charge wireless devices. All models except the Powersoft 230V version include a locking storage drawer.

Additionally, Powercube purchasers are eligible for EAW’s Red Certification training programme. Red Certification status is awarded after a two-day training seminar led by EAW’s Technical Training Manager Bernie Broderick and held at the customer’s offices. Red Certification ensures that all Powercube owners and their staffs are fully trained on all aspects of using the power and processing available through the Powercube.

‘With Powercubes and Red Certification, EAW KF740 owners can assure their customers of absolutely consistent performance night after night, in venue after venue,’ say EAW President, Jeff Rocha. ‘With a network of Red Certified KF740 rental companies, owners that cross rent and tours that contract PA vendors in different cities or different countries can get this same level of consistency anywhere on the planet.’
