The Royal Botanic Gardens in Southwest London – better known as Kew Gardens – recently provided the backdrop for the facility’s annual six-day music festival, Kew The Music with Capital Sound performing PA duties.

Now a consolidated part of London’s summer festival tapestry, and with the world’s biggest Victorian glasshouse as part of the scenery, it is the quintessential summer event. For the past five years, rental company Capital Sound, and loudspeaker partner Martin Audio have enjoyed a growing presence on the site.

Kew The MusicWorking with promoter Stuart Galbraith from Kilimanjaro Live and Production Manager LarMac Live Director Ian Greenway, Capital Sound again fielded Martin Audio’s MLA for audiences of 8,000 who arrived to see headliners, including Lewis Capaldi, Rick Astley, Garbage, Craig David and Billy Ocean.

To provide balanced audio coverage, Capital had to take into account an awkwardly long, thin site, tapering off from a wider field at the stage end.

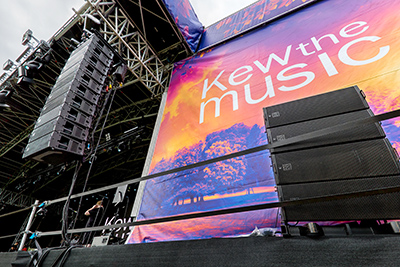

Capital now has the speaker design down to a fine art, flying ten MLA Compact elements each side of the stage, with a ground stack of four MLA Compact infilling at stage right and stage left to serve the picnickers on those flanks. Four Martin Audio DD12s across the stage provided close field coverage for those who wanted to get up close and personal with the broadside cardioid array, which comprised 14 WS218X subwoofers.

Several delay points were set, the first mast off to house left comprising ten MLA Compact. Further down the park at 65m from the mix position a second delay comprised of an MLA Mini stack/MSX sub combination, and 60m beyond that was a further groundstack of MLA Mini stack/MSX sub.

This created a perfect coverage solution, counteracting the effect of the shadows caused by the trees further back.

Once again, sound optimisation via Martin Audio’s proprietary Display software platform was in the experienced hands of Chris Pyne, who doubled his duties between system tech and FOH tech.

Appealing to a more mature demographic, with picnics and folding chairs as important as the music itself, the imperative was to allow the audience to experience the artistes as they would expect to hear on their sound systems at home. ‘We know they can rely on clarity and full frequency sound with MLA,’ says Capital Account Manager, Martin Connolly.

‘Over a five-year period we have developed a successful formula at this historic location with the help of Capital Sound and Martin Audio’s unique PA,’ Greenway adds. ‘It’s important that we are able to not only respect the heritage of Kew Gardens, but at the same time create a coherent sound across what is an awkwardly shaped site to provide a peerless listening experience for the audience.

‘The ability of the PA to shape the sound coverage we want, coupled with the expertise of the Capital team to optimise the system, has once again enabled us to do that.’

In addition to Chris Pyne at FOH, the team referred to included Crew Chief Tim Patterson and monitor engineer Nick Cook.

‘When an historic venue such as Kew Gardens puts on an event, only the best is good enough, so to have been asked to deliver this for five years is a real testament to the work Capital Sound and the MLA systems can do,’ says Martin Audio MD Dom Harter. ‘Their skill and knowledge, combined with our technology has ensured that they have been able to cater to the needs of a challenging site to deliver our signature sound, consistency and control to the whole audience.’

More: https://martin-audio.com
