Installation of the world’s first self-powered Meyer Sound exhibit hall overhead systems has given the McEnery Convention Center a renewed position in the meetings, incentives, conferencing and exhibition (MICE) community.
With 226 individually addressable loudspeakers plus 60 subwoofers, this unprecedented move provides flexible, full bandwidth response in standalone operation, and also serves as a delay system when temporary line arrays are deployed for large conference sessions.

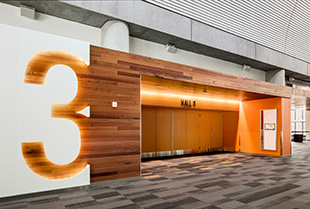

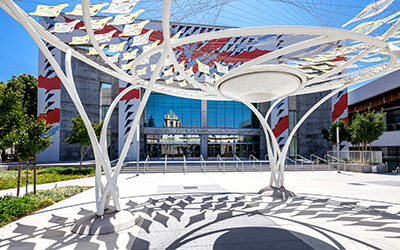

As the largest meeting and exhibition facility in Silicon Valley, the McEnery Convention Center has high expectations set by users like Apple, Facebook and NVidia. The requirements of an unusually sophisticated and demanding client base were factored into a recent US$22m renovation of A/V technologies and other user amenities in the three main exhibit halls. Spearheading the drive for a ‘think-outside-the-box’ approach was Tim Foster, Director of Production for Team San Jose – the management group charged with operation of the facility on behalf of the city.
‘Silicon Valley is the global epicentre for innovation, and that innovative spirit extends beyond IT and Internet to new applications of A/V technologies’ Foster says. ‘We decided to look at ways to meet or exceed all client expectations by doing things that other meeting facilities cannot do effectively. And that required a new way of thinking.’
Foster was familiar with Meyer Sound from his prior career as a production manager for Neil Young, Jefferson Starship and Norah Jones. ‘Meyer Sound stays on the forefront of technology,’ he says. ‘I knew they would understand our needs and give us the most bang for the buck.’
The first phase of the project was removal of the old drop ceiling that held a T-bar-mounted constant voltage system. Removal exposed barrel-shaped ceilings that generated reverberation times of close to seven seconds, but under the direction of consultants Charles M Salter and Associates, the mid-band RT60 was brought down to just over one second with aggressive acoustical treatment.
The new sound reinforcement system was designed and installed by Integrated Communication Systems of San Jose, with Mark Berlo heading the design team for all audio components as well as control infrastructure.
A key proposal was to implement a ceiling sound reinforcement system that could integrate seamlessly as delay systems whenever front line arrays are brought in for conference sessions. But in order to accomplish this regardless of the zero point (stage location), the system would not only require linear, full bandwidth response but also offer the ability to delay each loudspeaker individually.
‘When Tim Foster explained the goals for this project, I knew we would have to put in a system that would be accepted by A-1 engineers hired by prestige clients for major events,’ Berlo says. ‘Also, in order to seamlessly integrate with front arrays, we would need a system with linear phase and frequency response. The loudspeakers had to be compact and lightweight, and we had to provide the ability to delay each loudspeaker individually so that we could adapt to a zero point at any stage location.’
The latter requirement heavily favoured Meyer Sound’s IntelligentDC technology, which combines the sonic advantages of self-powered loudspeakers with the installation benefits of low voltage systems. Each loudspeaker receives a discrete, dedicated line level audio signal plus 48V DC power from a remote, rack-mounted MPS-488HP power supply unit. The technology also affords comprehensive status monitoring of all loudspeakers in the system.
‘IntelligentDC is really the only cost-effective way to get that ultimate level of performance and total flexibility for delaying each loudspeaker,’ Berlo observes.
The MPS-488HP units receive dedicated signals for the 226 main loudspeakers from the newly expanded networked DSP system, allowing each loudspeaker to be individually delayed, equalised or muted. ‘I can access any and all loudspeakers separately on my iPad,’ Foster says.

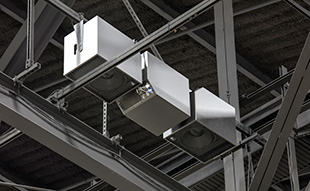

The main loudspeaker selected for the project was the UPJunior-XP, a compact two-way system weighing 26lb and offering a precise 80° by 50° coverage pattern. To extend flat system bandwidth to the lowest octaves – a total of 60 Amie-Sub subwoofers are configured as 20 triplets in cardioid configurations.
‘The directional control of cardioid configuration was essential for controlling bass bounce from the barrel-shaped ceilings, and it is remarkably effective,’ says Berlo, who is confident that the innovative new system will pay dividends. ‘The space is now much more usable for a wider client base. In the meetings business time matters, and the time it takes to set up and tune delays can be critical in scheduling – sometimes adding another day. That’s not needed here, and it’s something that is not offered anywhere else that we know of. I’m pleased with the way it turned out, and we’re very proud of it.’
For Tim Foster of Team San Jose, the audio renovation marks a turning point: ‘We’ve broken a barrier in our ability to leverage in-house technologies, and Meyer Sound is the most significant component in that breakthrough.’
The exhibit hall technology overhaul was a major undertaking that also relied on contributions from other key members of Team San Jose, including former CEO Dave Costain, Director of Event Operations Gabriel Nemeth and former General Manager of Convention Center Operations, Ewell Sterner. Leading the efforts on behalf of San Jose Public Works were former Senior Engineer Tony Andary and Acting Senior Engineer Huimin Mu.
