The Emmanuel Centre serves the broad Christian community in the heart of Westminster. With a 1,000 capacity, its circular main auditorium has a domed glass roof supported by 24 pairs of marble columns between high arched windows – giving it a reverberation time of around 3s seconds and poor speech intelligibility.

Like many similar venues, the Emmanuel Centre is increasingly a multi-purpose space. Where once the sound reinforcement needs were for speech only, the schedule now includes a wide variety of live music performances and concerts. To bring its sound up to date, Emmanuel Centre Head of Sound Elvis Uriona looked to Autograph Sales & Installations.

The Grade 2 listed status of the building meant that drilling into the structure of the venue was forbidden, ruling out the installation of flying points. And in the view of Autograph’s Peppe Mallozzi, who led the system design for Autograph, a ground-supported flown solution would look ‘horrendous’. Happily, the venue’s sound team were open to a groundstack solution as an alternative since one of their biggest clients, Hillsong Church, whose services feature full rock and roll shows, had for some time been bringing in its own d&b audiotechnik V-Series system.

Keen to cater for visitors, Emmanuel Centre wanted a permanent system which would serve a big rock and roll show, and which Hillsong would be happy to use – while still providing crystal clear speech reproduction for every seat in the auditorium. d&b lent support in the form of Oran Burns, d&b Education & Application Support, to work with Mallozzi and the Emmanuel Centre technical staff.

‘Obviously, if you’re groundstacking a system left and right of the stage, you have the problem of it being very loud for the people closest to the speakers and potentially not loud enough for the people at the very back,’ Burns says.

What’s more, in such a reverberant environment, accurate pattern control is crucial. To meet the challenge of coverage without over-exciting the acoustics of the room, the design proposed by Mallozzi harnessed the highly controlled directivity of the V-Series cabinets and the passive cardioid design of the V-Subs.

‘They had the demo system for about a week,’ says Mallozzi. ‘They were able to use it for some corporate shows, a couple of Sunday services, and they were convinced. They said, ‘this is just incredible’.’

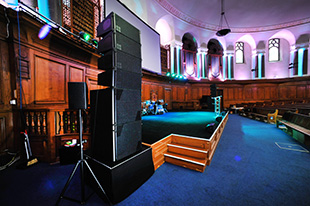

With the effectiveness of the system confirmed, installation took place in January 2018, project managed by Adam Broom, Autograph Technical Sales Engineer. The final design features Vi-Series cabinets, the installation-specific variant of the V-Series. Seated on 600mm risers, two Vi-Subs per side are topped by two Vi12 cabinets, their 120˚ horizontal dispersion targeting the front half of the room, while above these two Vi8s per side, with 80˚ horizontal dispersion, neatly target the further reaches. Four d&b E8s on the stage lip serve as front fill, while a further two E8s per side are mounted on the ground-stack as out fills, completing an even 180˚ coverage.

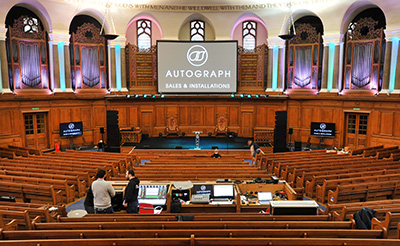

The system is powered by three d&b 30D amplifiers, and user-friendly access to system presets is enabled via the d&b R1 remote control software. Ensuring the venue has control tools enough to satisfy the needs of any visiting sound engineer, Autograph also provided a DiGiCo SD12 compact digital mixing console and, as part of its service, is delivering training for the Emmanuel Centre staff for both the d&b rig and accompanying DiGiCo SD12 mixing set-up.

‘Getting intelligibility all the way to the back, in such a reverberant room, from a single position at the front, was quite a challenge,’ Burns says. ‘We needed V-Series not necessarily for its level requirements, but for its directivity control. It controls down to below 300Hz in the horizontal, and that was necessary to get the intelligibility to the back of the room. Relative to the pattern control that it offers, the V-Series is actually quite a small cabinet.

‘The passive cardioid design of the V-Subs is also very useful, giving a significant rejection to the rear. It’s low frequency pattern control that helps to create a clear sub impulse in the room. The cardioid subs play a big part in achieving that performance.’

‘Jonathan, the main in-house sound engineer, called me and said “it’s incredible, it’s getting better and better”,’ says Mallozzi. ‘Now, the Emmanuel Centre can really predict what a show will sound like and they have a huge amount of stage rejection, so can really push the live microphones, which couldn’t be done before. The Centre has its DiGiCo SD12 and d&b R1 remote control, so they can play all sorts of clever tricks with it. They’re very, very happy.’
