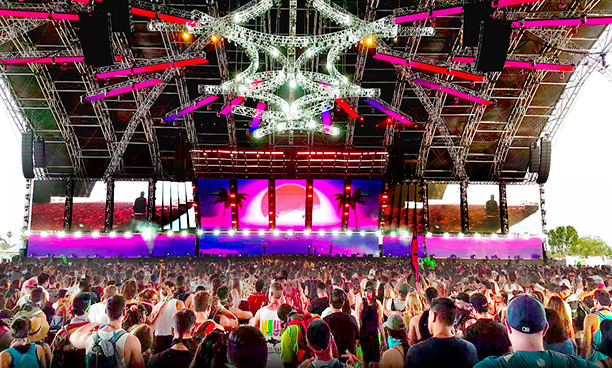

Coachella’s Sahara Tent

Coachella’s Sahara Tent is, perhaps, the largest EDM stage in the world. For the 2018 event, the festival pushed the boundaries of what is possible in sound design with an array of Rat Sound’s SuperSub cabinets, driven by Powersoft M-Force moving magnet linear motor.

Rat Sound’s Dave Rat has been instrumental in Coachella’s sound systems for 19 consecutive years. As Coachella has grown and changed, Rat has seen its sound needs evolve accordingly. ‘Coachella is one of the more challenging events in the world from a sound perspective,’ he says. ‘The challenge is the massive coverage areas, minimising off-site sound and the need for quality and consistency.’

These demands have made it a proving ground for the boundary-pushing audio technologies. That inspired Rat to use Powersoft M-Force loaded SuperSub, setting a new standard in low-end performance in the process.

CoachellaRat put together systems for seven of Coachella’s stages, using L-Acoustics K1 and K2 mains, and L-Acoustics KS28 subwoofers. The Sahara Stage alone featured a system totalling 252 speakers, lending ‘an extra something’ to give festival attendees a truly unique and memorable experience. ‘I think for any live sound reinforcement venue or situation, low frequency is the key for connecting the artist with the audience physically,’ he says. ‘For full immersion in music you have got to be able to feel the sound.’

The SuperSub is less than 25 per cent larger than the popular world-class double 18-inch, but provides significantly more output down to much lower frequencies. ‘The SuperSub is as loud as two to three very high quality double 18-inch boxes but takes up nearly the same truck space as one,’ Rat says. This not only allows Rat to put out tremendous bass from a deceptively small package, but also save a significant amount on trucking. ‘You multiple that power ratio out, and since they are self powered including amp racks, we see about a 50 per cent truck space savings. So, we’re using less real estate under the stage and less in the truck, which is a tremendous advantage. Bring less – get louder.’

‘My inspiration for designing the SuperSub came from seeing Powersoft’s M-Force moving motor product,’ Rat recalls. M-Force, an innovative transducer based on a moving magnet linear motor structure that differs from a traditional moving coil, leverages its design to deliver remarkable power handling, electromagnetic conversion, reliability and maximum SPL.

‘I had been working for quite some time with the use of metal tubes and wooden tubes in loudspeaker design, and seeing the M-Force product and some of the other enclosure designs that had been built out of that product, I felt that I could do something special with this.’

Rat explains how his enclosure design also maximises the performance of the M-Force: ‘If you look at a high pressure gas line or high pressure water line, they are all in tubes because a tube won’t expand or contract. You can take rectangular enclosure constructed with 2-inch thick plywood, mount a powerful enough speaker in it, and the walls will flex and vibrate. But if you mount that same high power speaker in a metal tube, the amount of expansion and contraction of the tube will be fractions of a millimetre instead of half an inch or a centimetre.

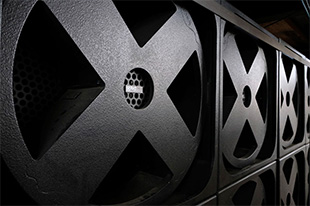

‘So by putting the M-Force motor in the tube and the tube in a square box, and making the ports the corners, I can get really long ports in a very rigid high Q enclosure. This rigidity, lack of box resonance, long port length and band-pass enclosure design, all combine to create an attractive subwoofer with amazing low frequency response, very high output and clear and defined output in the upper bandwidth.

With 18 SuperSubs positioned front and centre and complementing the L-Acoustics system, Rat was able to deliver a unique and powerful low-end reinforcement. In addition to peak sound performance, the M-Force motor provides the SuperSub with another valuable attribute: reliability. ‘We’re doing two weekends, back-to-back, each three days with 185 bands per weekend,’ Rat explains. ‘Combined with environmental factors like temperatures – both hot days and cold days – windy days, dust storms, and the sheer number of hours, you need a really tough sub.’ The SuperSub and its M-Force motor held up to the demanding conditions, performing without a hitch throughout the duration of the festival.

Sheer output is not the only sonic goal of the SuperSub: ‘We’re after optimal coverage, a memorable low frequency experience,’ Rat says. ‘The incredible magnetic strength of the M-Force makes it faster and harder-hitting than any double 18-inch speaker or 21-inch speaker I’ve ever heard.’ Their punchy, controlled depth delivers plenty of impact for Rat and his team.

‘For Coachella in particular, we pay quite a bit of attention to low-frequency control,’ Rat says. ‘We’re trying to saturate the audience without having sound going places we don’t want it to go. We don’t want the production offices overwhelmed, for instance, and we don’t want to blast people miles away and induce complaints. Our concerns are to not only to give the attendees and experience to enjoy and remember, it is also to respect the neighbours and adjoining community by minimising the sound radiated off-site. It’s no small or simple task to balance these two very important aspects.

SuperSubRat knows that he has yet to reach the full potential of what the M-Force motor and the SuperSub design can achieve. ‘To use the SuperSub to its full potential, I would need to work with an artist who writes music that uses its full frequency response,’ he says. ‘Right now, most music is designed for existing hardware which tends to struggle below 30Hz, so if you have loudspeakers that go lower than anything else, that’s an area that has been relatively unexplored. As it stands, nobody even makes a pro touring speaker that will reproduce the fundamental low C on a piano – at around 16Hz. But with Powersoft M-Force, that’s finally within reach.

‘Coachella is a great festival because each year it really pushes us to come up with quality solutions that take things to the next level,’ he adds. ‘They ask us, “How can we make it better than last year, how can it be the best?” And by pushing us they enable us to push the whole industry to bring things to the next level. It’s fun and exciting for us to use new technology like the M-Force to create an experience that will be memorable for so many people.’

‘M-Force technology is again at the cutting edge of sound design at Coachella, playing an integral role in the way that tens of thousands of fans are able to engage in a major festival sound experience,’ says Powersoft Brand and Communication Director, Francesco Fanicchi. ‘It is especially validating to our engineering team to know that we are able to bring such a massive sound experience to new heights through our innovation and design.’
