Next-proaudio has announced the PXA8001 integrated PX System loudspeaker manager, capable of driving a very wide range of rig configurations.

Powered by Powersoft and designed for flexibility and simplicity of set-up, the rack supports multiple configurations for the entire Next-proaudio PX System, with an 8kW Powersoft amplifier module, featuring four output channels (4x2/W 4Ω), that was specifically designed for multi-way loudspeakers and asymmetric loads. The PXA8001 power supply design uses PFC and featuring Smart Rails Management for operational efficiency, as well as high immunity to EMI interference.

The PX System Rack features a fixed switching frequency design of the Pulse Width Modulation (PWM) block, giving optimum performance, high predictability and immunity from intermodulation artifacts; all this with an additional and extensive set of protection mechanisms (power limiters, thermal shutdown, short circuit and overload, clip limiter).

The DSP audio processor unit protects controls and optimises the entire system including all necessary signal processing, crossover filtering, PEQ filters, All-Pass filters, delays and limiters. A built-in port allows to access to DSP processing from a PC running Powersoft Armonía software. For a versatility, four presets can be selected by the user – PXH64 Flat, PXH64 Music, PXH95 Flat and PXH95 Music.

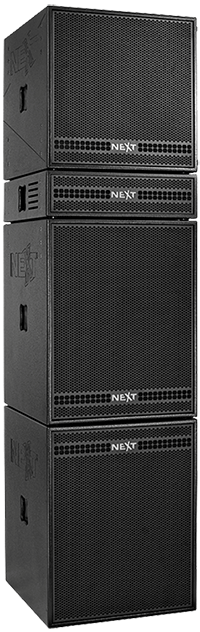

The PX Complete System is a plug-and-play, processor-controlled, horn-loaded stacking PA optimised for flexible, high-power and modular array configurations. The system is designed for portable applications as well as small concerts. side-fill or DJ monitoring.

One Complete system can power another PX Slave System, composed of the same cabinets and using a PXA8000 Drawer Slave Rack instead of PXA8001 Power Rack which sahres the styling and footprint of the PX System.

More: www.next-proaudio.com
