Solid State Logic has announced the Duality δelta and AWS δelta consoles.

SSL Delta ControlThe release marks the introduction of δelta-Control (δ-Ctrl), a new analogue console automation platform for SSL studio technology that unites automation in the analogue console domain with DAW-based workflow. All future Duality and AWS consoles will be δelta models. Upgrades are available for all preceding models.

At the heart of δ-Ctrl is a native AAX/RTAS/AU/VST/VST3 plug-in that allows automation of the console as if it were a DAW plug-in. The automation system in the DAW is used to record and playback control data from the faders and switches on the console as an alternative to the SSL legacy console automation system. The δ-Ctrl plug-in is inserted into a DAW mixer audio channel, and receives and sends control data from an assigned console channel, VCA or Master fader via a high-speed Ethernet Network connection. Audio on the DAW track passes through the plug-in slot unprocessed, so the plug-in can be combined with other DAW plug-ins.

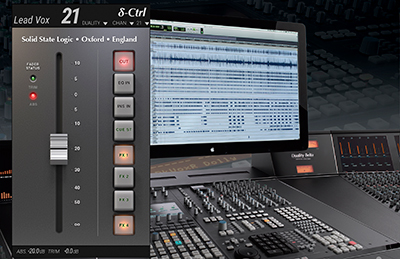

The console fader, mutes and relevant switches are represented as plug-in parameters in a δ-Ctrl plug-in GUI, and their automation data is recorded to the automation lane of the selected DAW channel. In playback the plug-in converts the stored automation data from the DAW into δ-Ctrl messages and routes these back to the console via the SSL Logictivity Network connection.

Automation data can be viewed and edited as normal plug-in data in the DAW tracks. The console Fader Absolute and Trim values are saved using the same dB law as selected DAW automation so that the Paste Special command can be used to copy existing DAW fader data into the plug-in. The Paste Special feature is available in Pro Tools and in most but not all DAWs.

δ-Ctrl retains all the key operational elements of SSL’s Signature Mix System with features such as Join, Revise, Motors Off and Snap Override, all controlled from dedicated front panel switches. The Motors Off mode offers the full non-moving fader SSL VCA mix. A new Motors Off, Touch Write mode emulates the SSL G Series Mix system Immediate Pickup (IP) option.

Duality δelta has undergone a ‘visual refresh’, with a new style for the Channel Displays interface and a new graphic design based Eyeconix library.

More: www.solidstatelogic.com
