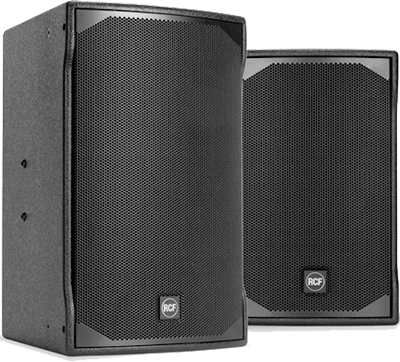

RCF’s full-range passive two-way E Max series comprises the E Max 3110 and E Max 3112, both aimed at delivering high-quality foreground sound for close-field or short-throw applications.

RCF E Max 3110 and E Max 3112Loaded with a 10-inch woofer and 1-inch compression driver, E Max 3110 delivers a maximum SPL of 128dB over a frequency range of 60Hz-20kHz, with a total handling power of 300WRMS. The E Max 3112 boasts a 12-inch woofer and 1-inch compression driver, and delivers a maximum SPL of 129 dB over a frequency range of 55Hz-20kHz, with a total power handling of 350WRMS. Both have a rotatable horn with 90° x 70° dispersion pattern. The LICC crossover design includes electronic protection on the high-frequency device.

The design of the woofers and compression drivers take advantage of RCF’s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

The speaker cabinets are built in heavy-duty birch plywood coated with black textured epoxy. A sturdy powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. The base of each speaker includes a robust steel pole socket for mounting on a stand or a subwoofer pole. Included are rigging points to fly the speakers for maximum architectural freedom on any installation. Threaded inserts are provided for optional mounting hardware in installed sound applications

The E Max Series features a custom designed mid-frequency shaping for close distance listening on a perfectly tuned crossover to ensure the best frequency and phase response. The LICC crossover design includes electronic protection on high-frequency device.

E Max 3112 key specs:

  • 129dB SPL max
  • 55-20kHz frequency response.
  • 1.4kW peak power.

  • 12-inch Woofer and 1-inch compression driver.
  • 90° x 70° dispersion.
  • Minimum phase crossover filter.
  • Thirteen M10 flying points

E Max 3110 key specs:

  • 128dB max SPL.
  • 60-20kHz frequency response.
  • 1.2kW peak power.

  • 10-inch Woofer and 1-inch compression driver

  • 90° x 70° dispersion.
  • Minimum phase crossover filter.
  • Thirteen M10 flying points.

More: wwwrfcaudio.com
