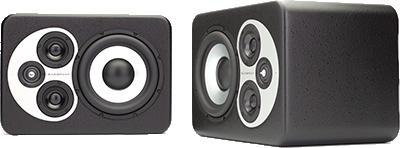

Barefoot Sound MicroMain45

Barefoot Sound MicroMain45 Featuring the same signal path, amplifier and driver technologies as the flagship MiniMain12, Barefoot Sound’s MicroMain45 is a three-way active monitor with controls for equalisation contour and an input level stepped attenuator.

The cabinet has a total of 14 liters internal volume, sealed woofer and midrange enclosures, machined aluminium baffle plate, and long-fibre wool acoustic damping throughout. The MM45 tweeter has a 1-inch ring radiator, advanced geometry motor, and rear waveguide chamber, with 180W Hypex amplifier. The midranges have two 2.5-inch aluminium cones, advanced geometry motors, and ±2mm linear excursion, with 180W Hypex amplifier. The woofer has an 8-inch aluminum cone with high linearity motor, and ±13mm linear excursion with a 250W Hypex amplifier.

Specifications:

· Input Impedance: 50kΩ.

· Frequency Response: 40Hz-45kHz (±3dB), 53Hz-40kHz (±1dB).

· Bass Response: -3dB @40Hz, Q = 0.707, Slope = 12dB/octave.

· Crossover Frequencies: 600/2,500Hz.

· AC Power Input: Nominal 115V AC or 230V AC selectable.

· Power Consumption: Idle: 18W, Maximum: 400W.

· Dimensions: 279mm x 394mm x 273 mm.

More: http://barefootsound.com
